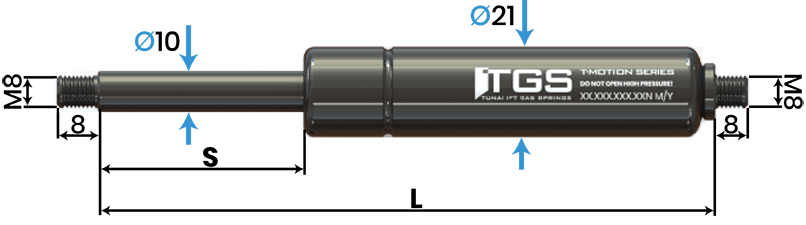

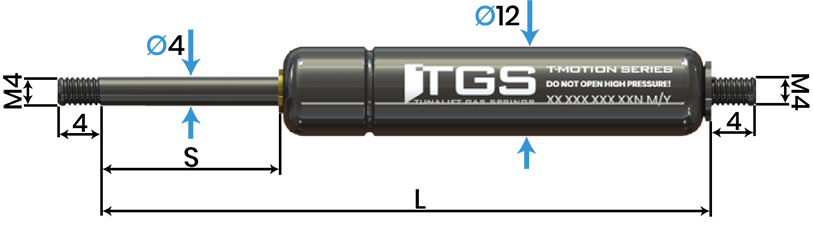

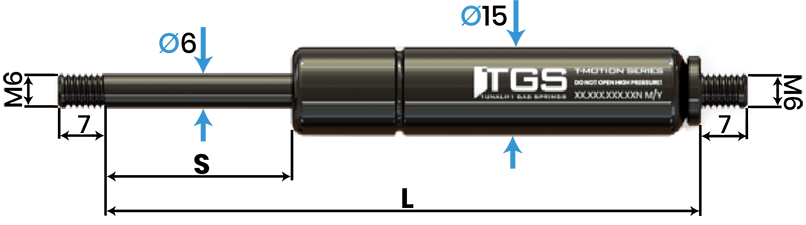

T-MOTION | Lift Series gas springs are most popular product group of TGS for decades. Main function of this type is lifting or counterbalancing lids, hatches or similar applications. Lift type gas springs are easy to observe in almost all industries, such as furniture, automotive, medical, aerospace, marine, machinery and etc.


T-MOTION | Lift Series


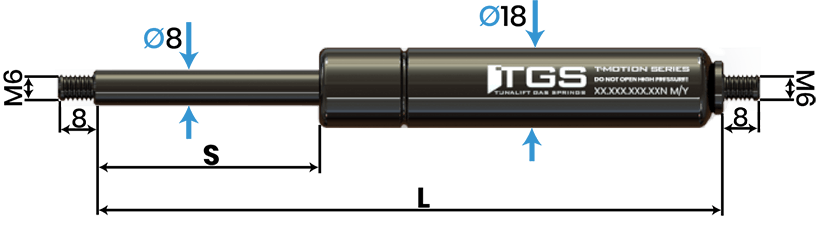

Code S L F1 3D
AA.20.100 20 100 30N - 150N
AA.30.90 30 90 30N - 150N
AA.40.120 40 120 30N - 150N
AA.50.130 50 130 30N - 150N
AA.60.152 60 152 30N - 150N
AA.70.170 70 170 30N - 150N
AA.80.200 80 200 30N - 150N
AA.100.249 100 249 30N - 150N
AA.120.270 120 270 30N - 150N
AA.150.330 150 330 30N - 150N
Code S L F1 3D
BA.20.86 20 86 50N - 400N
BA.30.100 30 100 50N - 400N
BA.40.126 40 126 50N - 400N
BA.50.156 50 156 50N - 400N
BA.60.162 60 162 50N - 400N
BA.73.184 73 184 50N - 400N
BA.75.215 75 215 50N - 400N
BA.80.199 80 199 50N - 400N
BA.90.270 90 270 50N - 400N
BA.100.239 100 239 50N - 400N
BA.120.282 120 282 50N - 400N
BA.140.345 140 345 50N - 400N
BA.150.342 150 342 50N - 400N
BA.170.395 170 395 50N - 400N
BA.180.434 180 434 50N - 350N
BA.200.442 200 442 50N - 350N
Code S L F1 3D
CA.50.155 50 155 50N - 700N
CA.60.169 60 169 50N - 750N
CA.75.214 75 214 50N - 800N
CA.80.209 80 209 50N - 800N
CA.90.265 90 265 50N - 800N
CA.100.249 100 249 50N - 800N
CA.120.289 120 289 50N - 800N
CA.140.345 140 345 50N - 800N
CA.150.395 150 395 50N - 800N
CA.160.370 160 370 50N - 800N
CA.170.394 170 394 50N - 800N
CA.180.409 180 409 50N - 800N
CA.200.450 200 450 50N - 800N
CA.220.491 220 491 50N - 800N
CA.250.550 250 550 50N - 800N

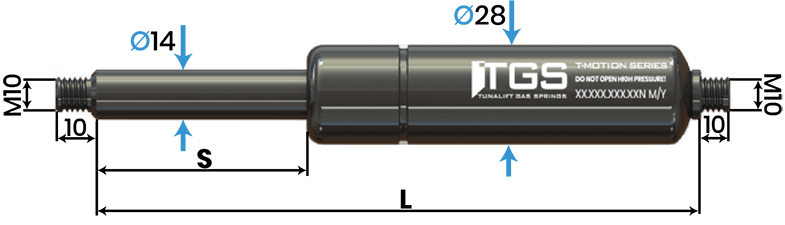

Code S L F1 3D
DA.50.164 50 164 100N - 1200N
DA.75.214 75 214 100N - 1200N
DA.100.249 100 249 100N - 1200N
DA.125.304 125 304 100N - 1200N
DA.150.349 150 349 100N - 1200N
DA.175.405 175 405 100N - 1200N
DA.200.449 200 449 100N - 1200N
DA.225.504 225 504 100N - 1200N
DA.250.548 250 548 100N - 1200N
DA.275.603 275 603 100N - 1200N
DA.300.648 300 648 100N - 1200N
DA.325.705 325 705 100N - 1200N
DA.350.749 350 749 100N - 1200N
DA.375.804 375 804 100N - 1200N
DA.400.848 400 848 100N - 1200N
Code S L F1 3D
GB.50.170 50 170 150 - 2500N
GB.100.266 100 266 150 - 2500N
GB.150.366 150 366 150 - 2500N
GB.200.466 200 466 150 - 2500N
GB.250.566 250 566 150 - 2500N
GB.300.666 300 666 150 - 2500N
GB.350.766 350 766 150 - 2500N
GB.400.866 400 866 150 - 2500N
GB.450.970 450 970 150 - 2500N
GB.500.1066 500 1066 150 - 2500N

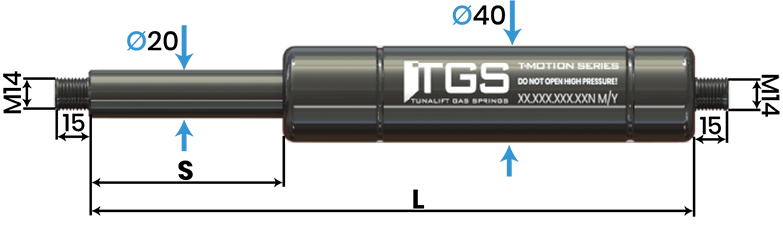

Code S L F1 3D
MQ.50.220 50 220 500N - 5000N
MQ.100.317 100 317 500N - 5000N
MQ.150.417 150 417 500N - 5000N
MQ.200.517 200 517 500N - 5000N
MQ.300.717 300 717 500N - 5000N
MQ.400.917 400 917 500N - 5000N
MQ.500.1117 500 1117 500N - 5000N
MQ.600.1317 600 1317 500N - 5000N
MQ.800.1717 800 1717 500N - 5000N
MQ.1000.2117 1000 2117 500N - 5000N
Please choose mounting group:
Please choose mounting type:

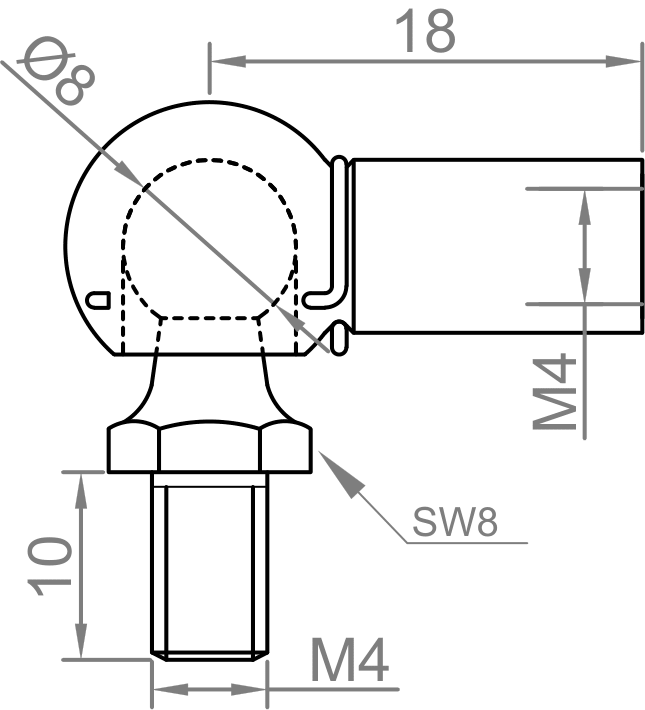

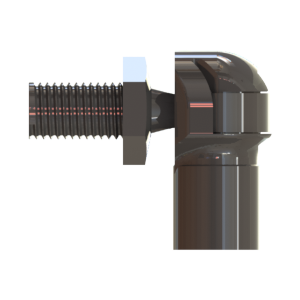

BALL JOINTS-BJ-J001
FEATURES J001
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc plated
Compatible With S12
Components DS08, PA42, B402
Weight 0.011 KG
Download
3D View
BALL JOINTS-BJ-J032
FEATURES J032
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc plated
Compatible With S15, S18, D15, D18, W18
Components B001; DS10; PA01
Weight 0.029 KG
Download
3D View

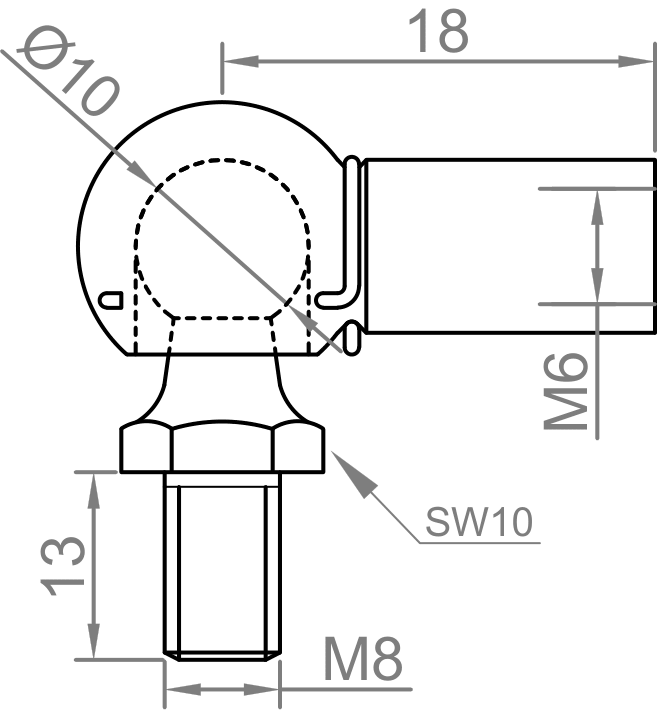

BALL JOINTS-BJ-J033
FEATURES J033
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc plated
Compatible With S15, S18
Components B001; DS10; PA45
Weight 0.029 KG
Download
3D View
BALL JOINTS-BJ-J083
FEATURES J083
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc plated
Compatible With S18, S21, W22, D21
Components B005; DS10; PA45
Weight 0.034 KG
Download
3D View

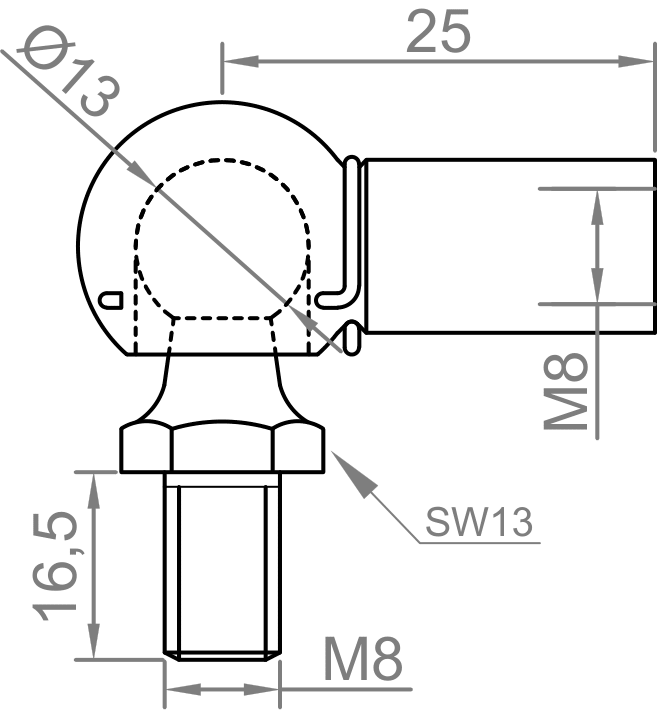

BALL JOINTS-BJ-J113
FEATURES J113
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc plated
Compatible With S21, S22, W22
Components B006; DS13; PA54
Weight 0.049 KG
Download
3D View
BALL JOINTS-BJ-J174
FEATURES J174
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc plated
Compatible With S21, S22, W22
Components B006; DS13; PA55
Weight 0.049 KG
Download
3D View
BALL JOINTS-BJ-J173
FEATURES J173
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc plated
Compatible With S27, S28
Components B074; DS13; PA55
Weight 0.054 KG
Download
3D View

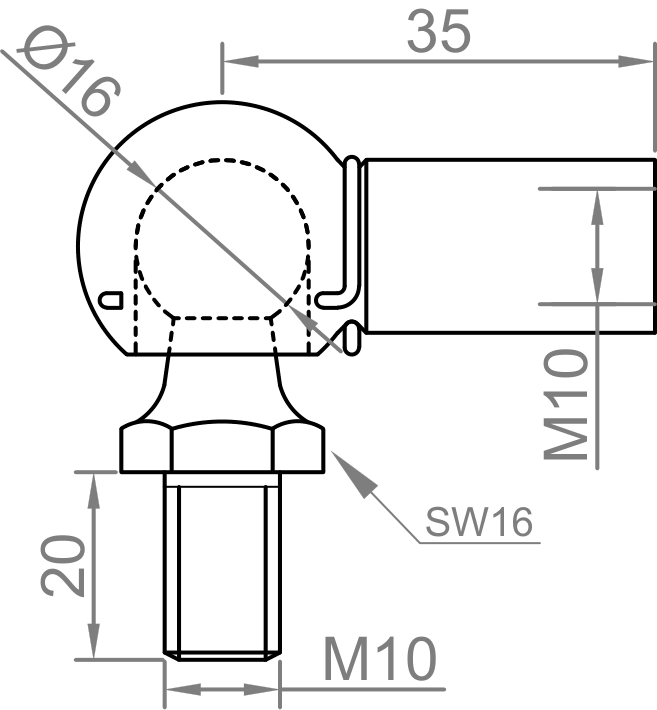

BALL JOINTS-BJ-J153
FEATURES J153
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc plated
Compatible With S28
Components B125; DS16; PA67
Weight 0.102 KG
Download
3D View
BALL JOINTS-BJ-J180
FEATURES J180
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc plated
Compatible With S40
Components B401; DS19
Weight 0.219 KG
Download
3D View
BALL JOINTS-PJ-P010
FEATURES P010
Body Material Plastic-PA66 GF30
Inside Clip: CK67, Thread: Brass
Compatible With S15, S18
Components P001, PA01
Weight 0.008 KG
Download
3D View

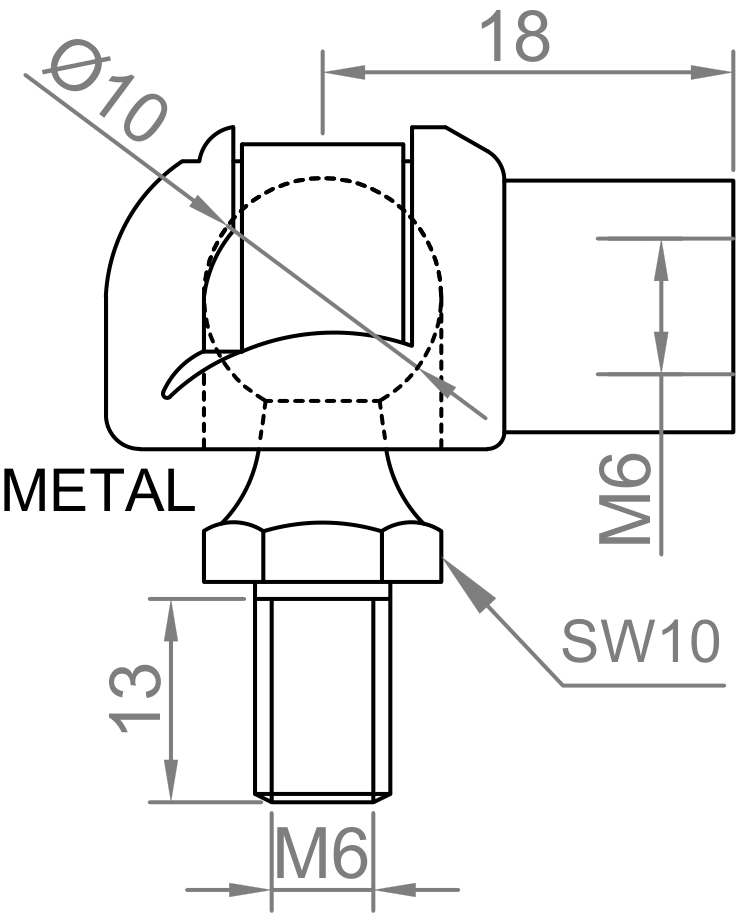

BALL JOINTS-QJ-Q011
FEATURES Q011
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S15, S18
Components Q001, PA14
Weight 0.014 KG
Download
3D View
BALL JOINTS-QJ-Q023
FEATURES Q023
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S18, S21, S22, S26, S32
Components Q002, PA03
Weight 0.014 KG
Download
3D View
Please choose mounting type:

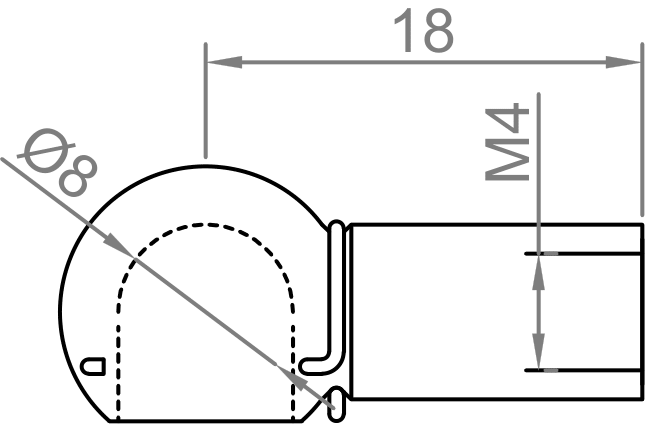

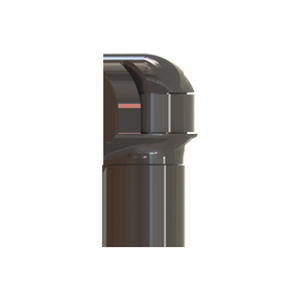

BALL SOCKETS-BA-B402
FEATURES B402
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc plated
Compatible With S12
Components B402; DS08
Weight 0.007 KG
Download
3D View

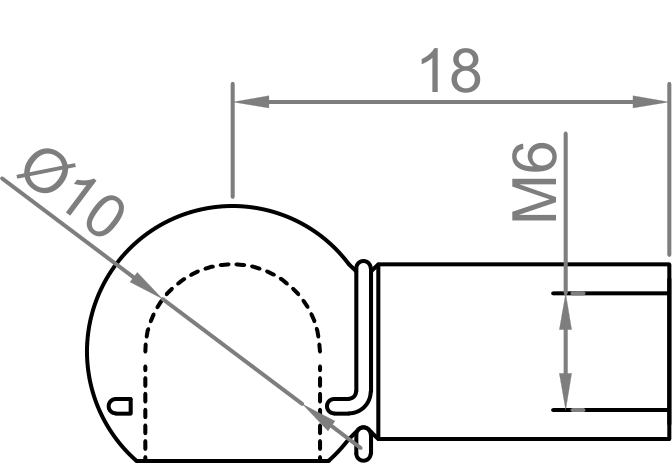

BALL SOCKETS-BA-B001
FEATURES B001
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc plated
Compatible With S15, S18, D15, D18, W18
Components B001; DS10
Weight 0.014 KG
Download
3D View
BALL SOCKETS-BA-B002
FEATURES B002
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc plated
Compatible With S15, S18, D15, D18, W18
Components B002; DS10
Weight 0.016 KG
Download
3D View

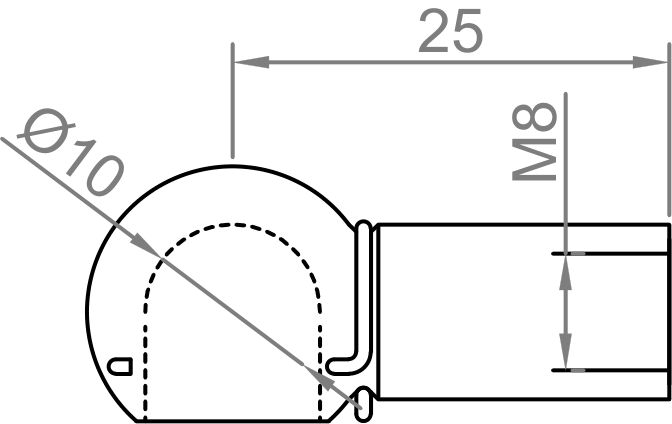

BALL SOCKETS-BA-B005
FEATURES B005
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc plated
Compatible With S18, S21, W22, D21
Components B005; DS10
Weight 0.013 KG
Download
3D View
BALL SOCKETS-BA-B006
FEATURES B006
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc plated
Compatible With S21, S22, W22
Components B006; DS13
Weight 0.026 KG
Download
3D View
BALL SOCKETS-BA-B007
FEATURES B007
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc plated
Compatible With S21, S22, W22
Components B007; DS13
Weight 0.029 KG
Download
3D View
BALL SOCKETS-BA-B074
FEATURES B074
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc plated
Compatible With S27, S28
Components B074; DS13
Weight 0.03 KG
Download
3D View
BALL SOCKETS-BA-B125
FEATURES B125
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc plated
Compatible With S28
Components B125; DS16
Weight 0.057 KG
Download
3D View
BALL SOCKETS-BA-B401
FEATURES B401
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc plated
Compatible With S40
Components B401; DS19
Weight 0.125 KG
Download
3D View

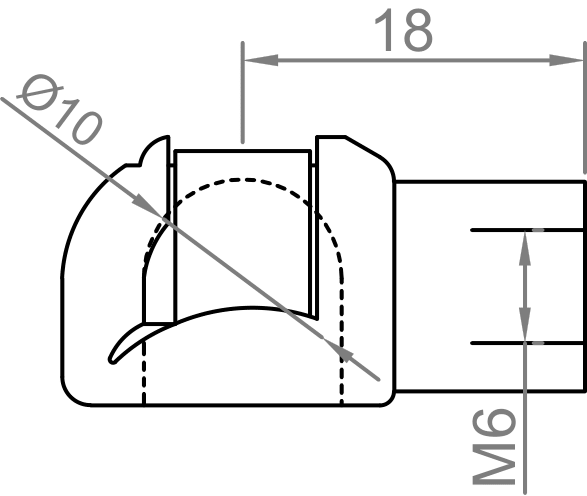

BALL SOCKETS-P-P001
FEATURES P001
Body Material Plastic-PA66 GF30
Inside Clip: CK67, Thread: Brass
Compatible With S15, S18, D15, D18, W18
Components P001
Weight 0.004 KG
Download
3D View
BALL SOCKETS-PLE-PLE1
FEATURES PLE1
Body Material Plastic-PA66 GF30
Inside Clip: CK67, Thread: Brass
Compatible With S15, S18, D15, D18, W18
Components PLE1
Weight 0.009 KG
Download
3D View

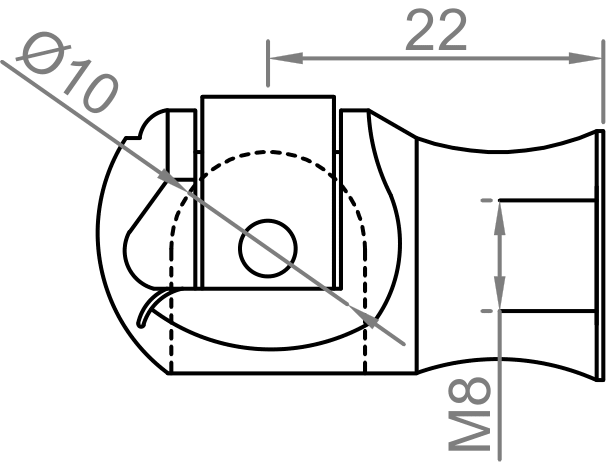

BALL SOCKETS-PLE-PLE2
FEATURES PLE2
Body Material Plastic-PA66 GF30
Inside Clip: CK67, Thread: Brass
Compatible With S21, S22, W22
Components PLE2
Weight 0.01 KG
Download
3D View

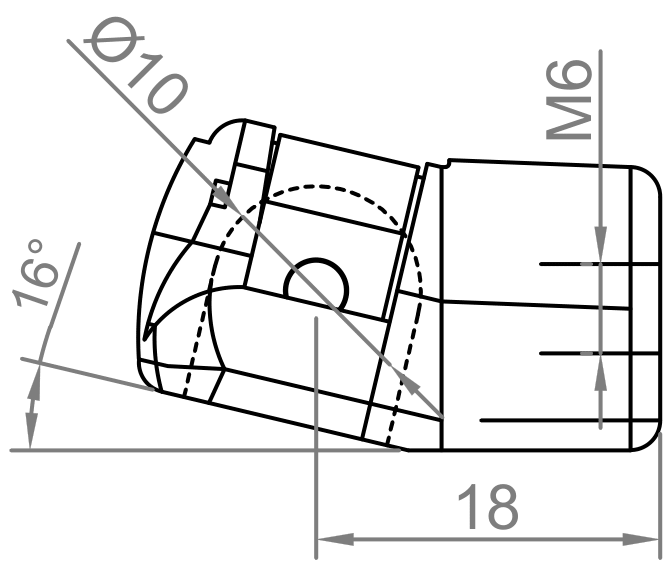

BALL SOCKETS-PLA-PLA1
FEATURES PLA1
Body Material Plastic-PA66 GF30
Inside Clip: CK67, Thread: Brass
Compatible With S15, S18, D15, D18, W18
Components PLA1
Weight 0.01 KG
Download
3D View

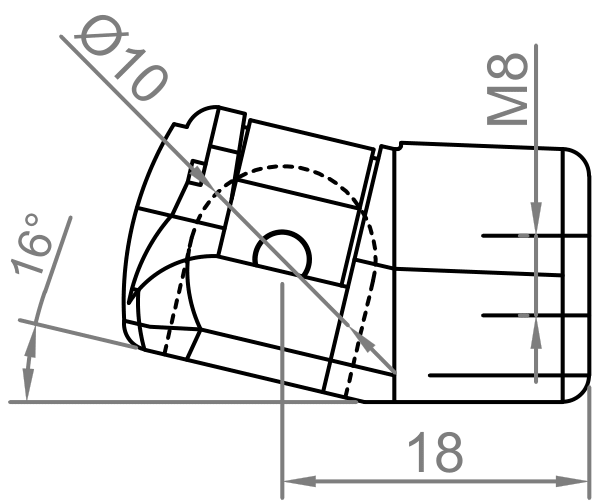

BALL SOCKETS-PLA-PLA2
FEATURES PLA2
Body Material Plastic-PA66 GF30
Inside Clip: CK67, Thread: Brass
Compatible With S21, S22, W22
Components PLA2
Weight 0.01 KG
Download
3D View
BALL SOCKETS-PL-PL01
FEATURES PL01
Body Material Plastic-PA66 GF30
Inside Clip: CK67, Thread: Brass
Compatible With S15, S18, D15, D18, W18
Components PL01
Weight 0.01 KG
Download
3D View
BALL SOCKETS-PL-PL02
FEATURES PL02
Body Material Plastic-PA66 GF30
Inside Clip: CK67, Thread: Brass
Compatible With S21, S22, W22
Components PL02
Weight 0.01 KG
Download
3D View

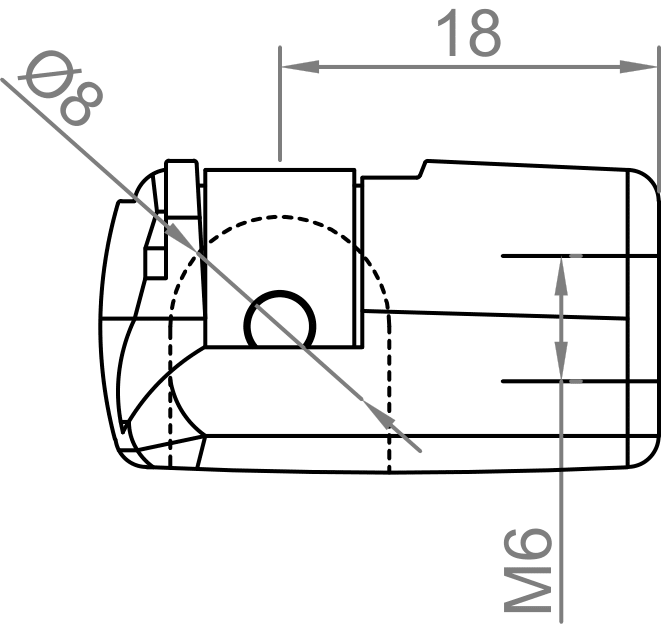

BALL SOCKETS-PL-PL05
FEATURES PL05
Body Material Plastic-PA66 GF30
Inside Clip: CK67, Thread: Brass
Compatible With S15, S18, D15, D18, W18
Components PL05
Weight 0.007 KG
Download
3D View

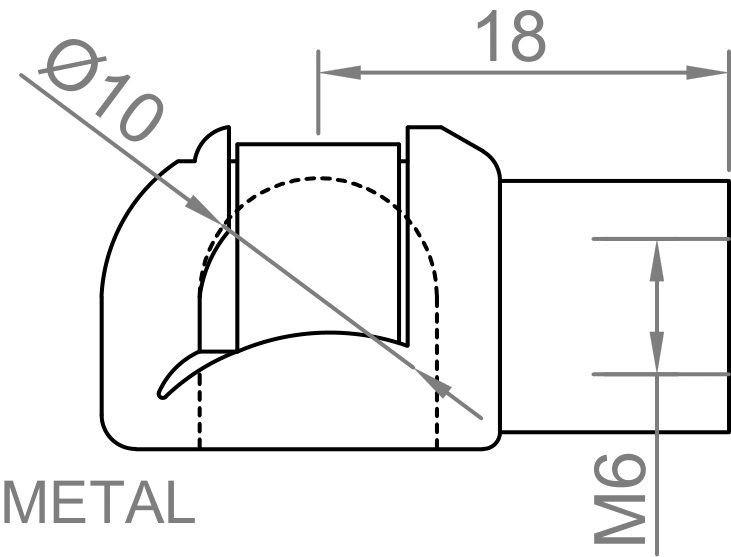

BALL SOCKETS-Q-Q001
FEATURES Q001
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S15, S18, D15, D18, W18
Components Q001
Weight 0.014 KG
Download
3D View
BALL SOCKETS-Q-Q002
FEATURES Q002
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S15,S18,D15,D18,W18
Components Q002
Weight 0.013 KG
Download
3D View
Please choose mounting type:

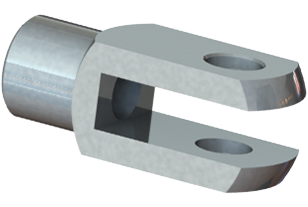

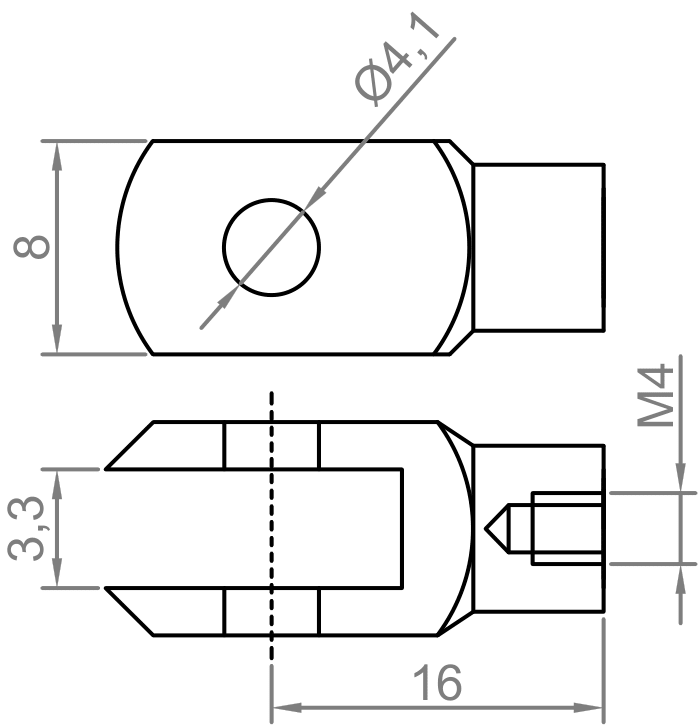

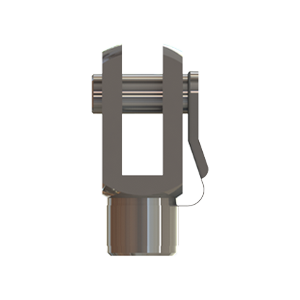

CLEVISES-FA-F020
FEATURES F020
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S12
Components F020
Weight 0.006 KG
Download
3D View
CLEVISES-FA-F001
FEATURES F001
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S15, S18
Components F001
Weight 0.008 KG
Download
3D View

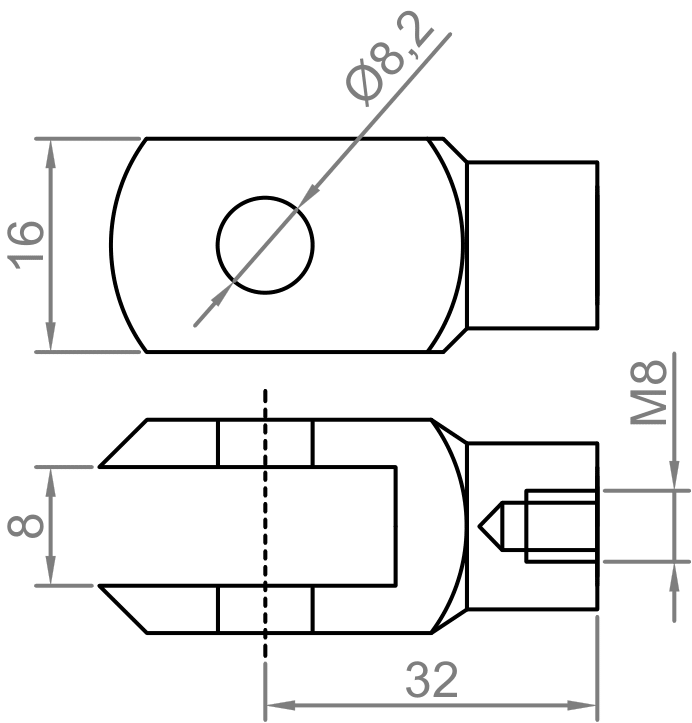

CLEVISES-FA-F005
FEATURES F005
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S21, S26, S28
Components F005
Weight 0.037 KG
Download
3D View
CLEVISES-FA-F034
FEATURES F034
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S21,S22,S26,S32
Components F034
Weight 0.074 KG
Download
3D View

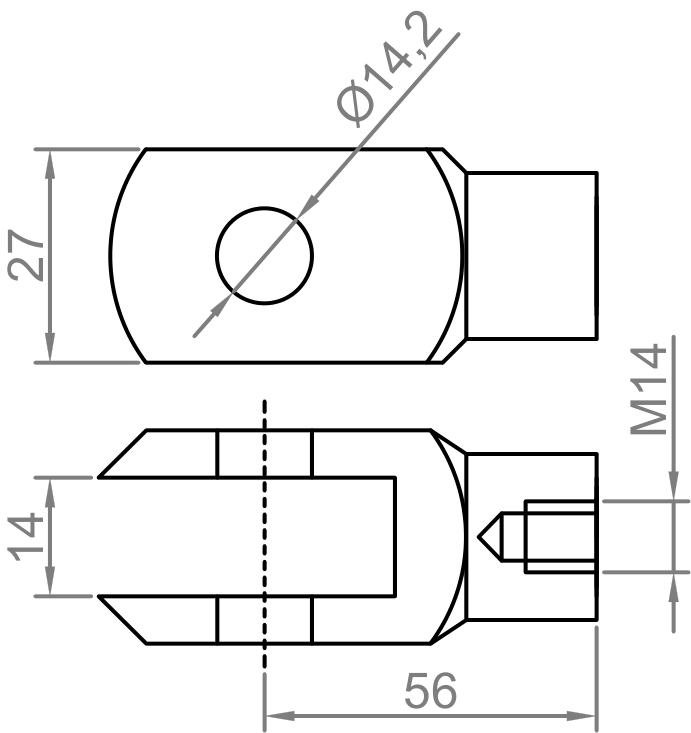

CLEVISES-FA-F141
FEATURES F141
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S40
Components F141
Weight 0.178 KG
Download
3D View

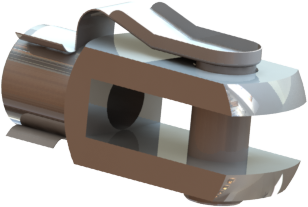

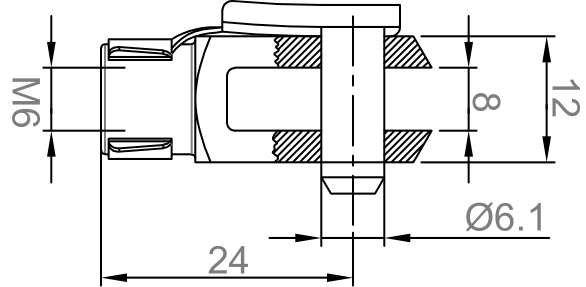

CLEVISES-FAC-FC01
FEATURES FC01
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S15, S18
Components F001, CF05
Weight 0.009 KG
Download
3D View

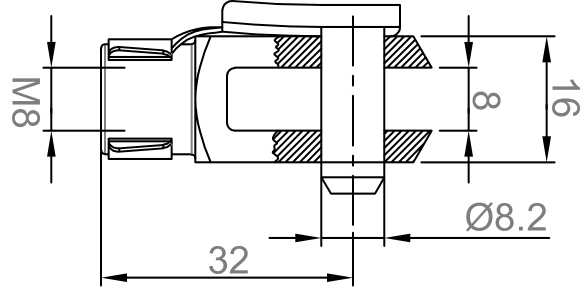

CLEVISES-FAC-FC02
FEATURES FC02
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S21, S26, S28
Components F005, CF07
Weight 0.047 KG
Download
3D View
CLEVISES-FAC-FC07
FEATURES FC07
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S18, S21
Components F020, CF01
Weight 0.007 KG
Download
3D View

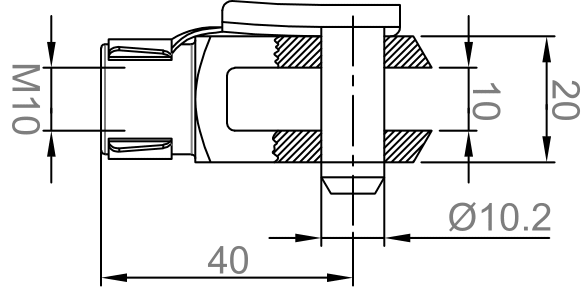

CLEVISES-FAC-FC10
FEATURES FC10
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S21, S26, S28
Components F034, CF09
Weight 0.093 KG
Download
3D View
CLEVISES-FAC-FC12
FEATURES FC12
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S40
Components F141, CF13
Weight 0.223 KG
Download
3D View
Please choose mounting type:

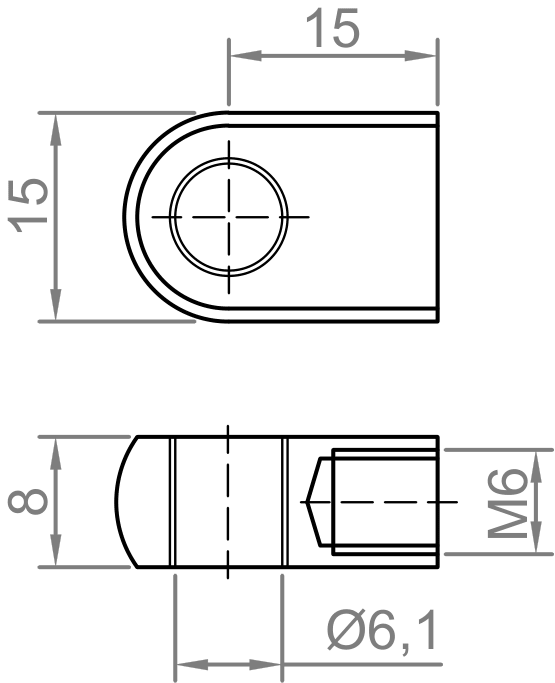

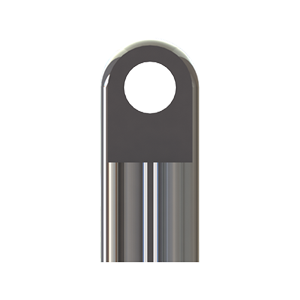

EYES-YC-Y016
FEATURES Y016
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S15, S18, D15, D18, W18
Components Y016
Weight 0.014 KG
Download
3D View
EYES-YC-Y017
FEATURES Y017
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S15, S18, D15, D18, W18
Components Y017
Weight 0.014 KG
Download
3D View

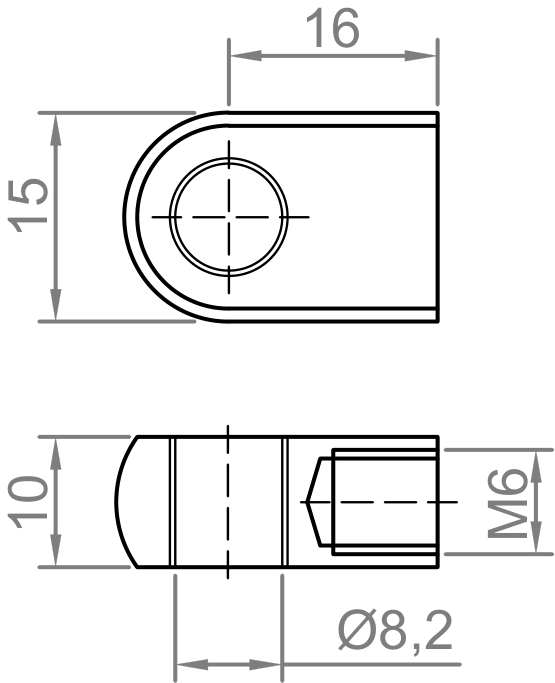

EYES-YC-Y019
FEATURES Y019
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S15, S18, D15, D18, W18
Components Y019
Weight 0.016 KG
Download
3D View

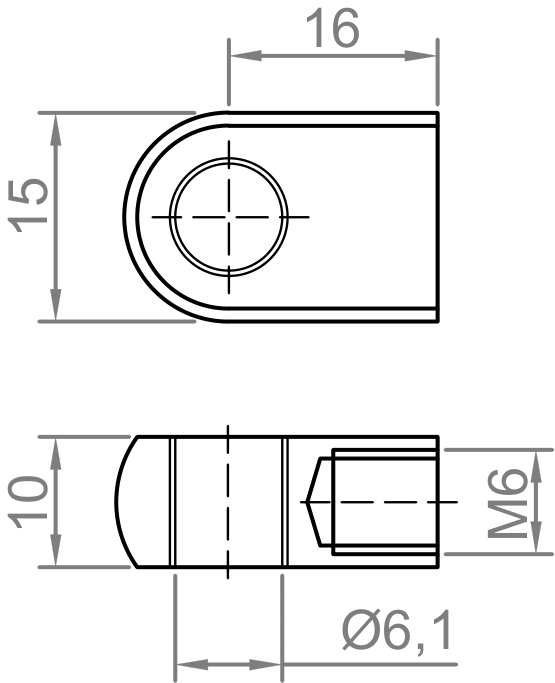

EYES-YC-Y524
FEATURES Y524
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S15, S18, D15, D18, W18
Components Y524
Weight 0.016 KG
Download
3D View
EYES-YC-Y009
FEATURES Y009
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S21, S22, W22
Components Y009
Weight 0.016 KG
Download
3D View

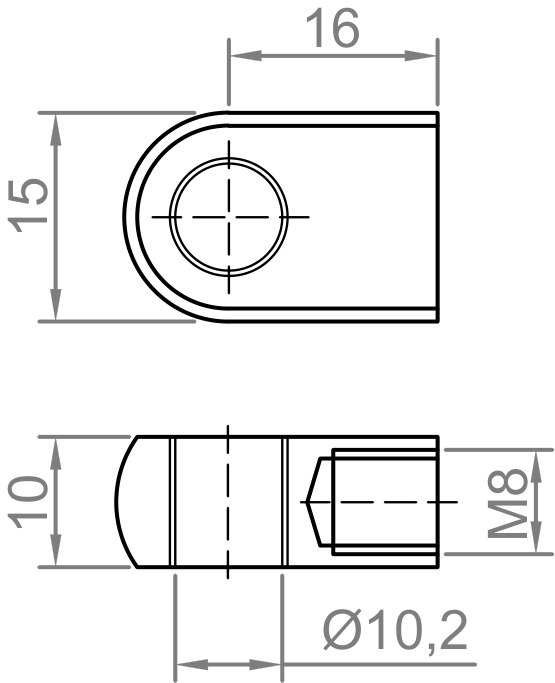

EYES-YC-Y010
FEATURES Y010
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S21, S22, W22
Components Y010
Weight 0.016 KG
Download
3D View
EYES-YC-Y540
FEATURES Y540
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S18, S21, S22, W18, W22, D18, D21
Components Y540
Weight 0.019 KG
Download
3D View
EYES-YC-Y541
FEATURES Y541
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S18, S21, S22, W18, W22, D18, D21
Components Y541
Weight 0.019 KG
Download
3D View
EYES-YC-Y542
FEATURES Y542
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S18, S21, S22, W18, W22, D18, D21
Components Y542
Weight 0.02 KG
Download
3D View
EYES-YA-Y001
FEATURES Y001
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S15
Components Y001
Weight 0.008 KG
Download
3D View

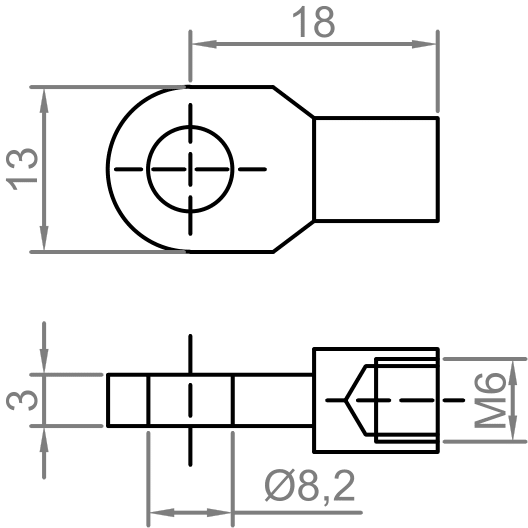

EYES-YA-Y002
FEATURES Y002
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S15
Components Y002
Weight 0.008 KG
Download
3D View
EYES-YA-Y003
FEATURES Y003
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S15, S18
Components Y003
Weight 0.009 KG
Download
3D View
EYES-YA-Y004
FEATURES Y004
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S21, S22, W22
Components Y004
Weight 0.009 KG
Download
3D View

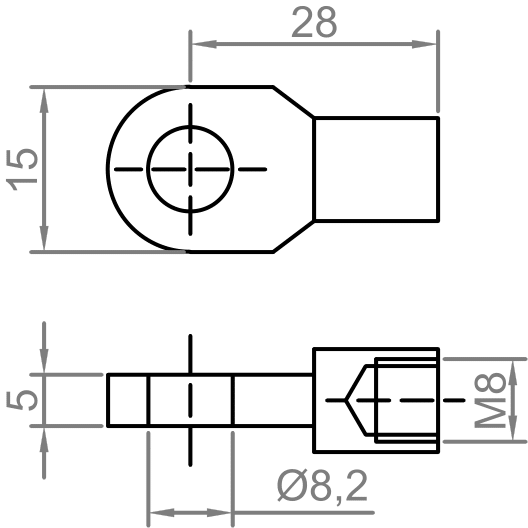

EYES-YA-Y005
FEATURES Y005
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S21, S22, W22
Components Y005
Weight 0.013 KG
Download
3D View

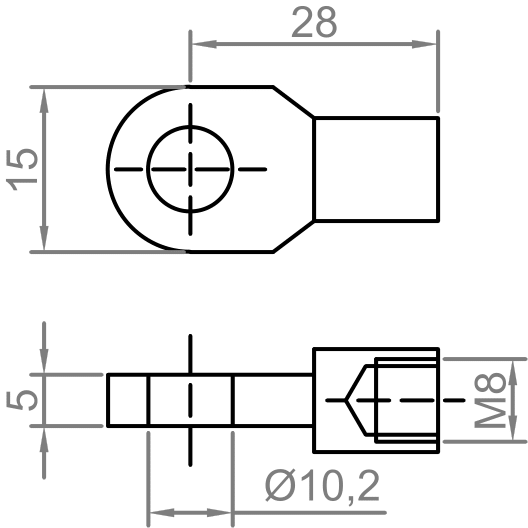

EYES-YA-Y006
FEATURES Y006
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S21, S22, W22
Components Y006
Weight 0.013 KG
Download
3D View
EYES-YB-Y069
FEATURES Y069
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S12
Components Y069
Weight 0.007 KG
Download
3D View

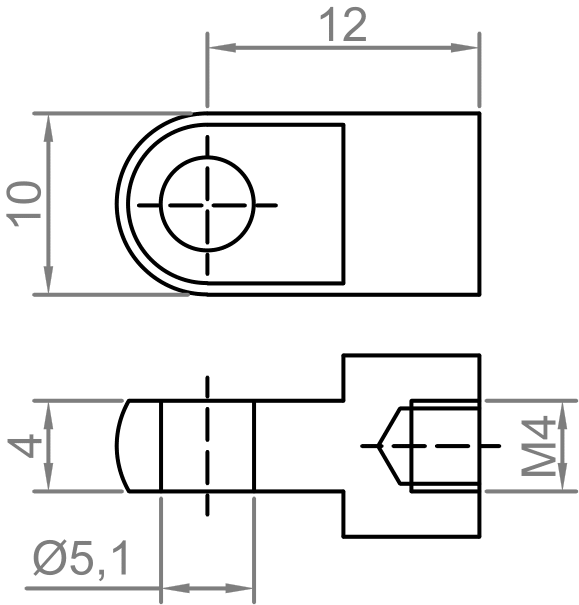

EYES-YB-Y104
FEATURES Y104
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S12
Components Y104
Weight 0.007 KG
Download
3D View

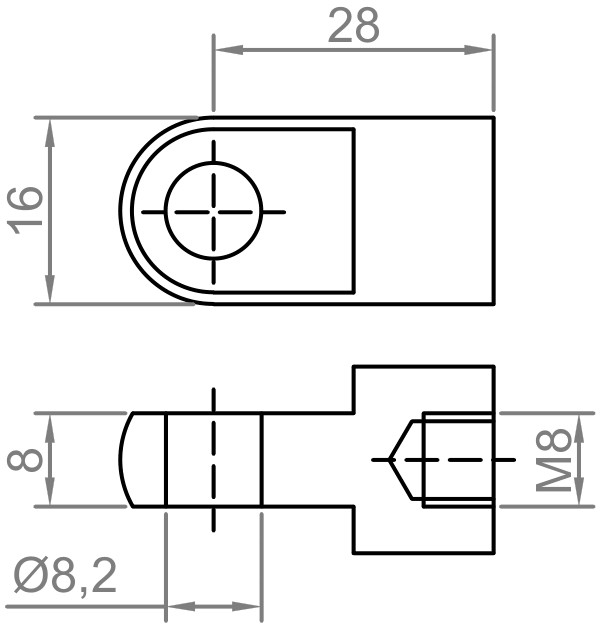

EYES-YB-Y023
FEATURES Y023
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S21, S22, W22
Components Y023
Weight 0.023 KG
Download
3D View

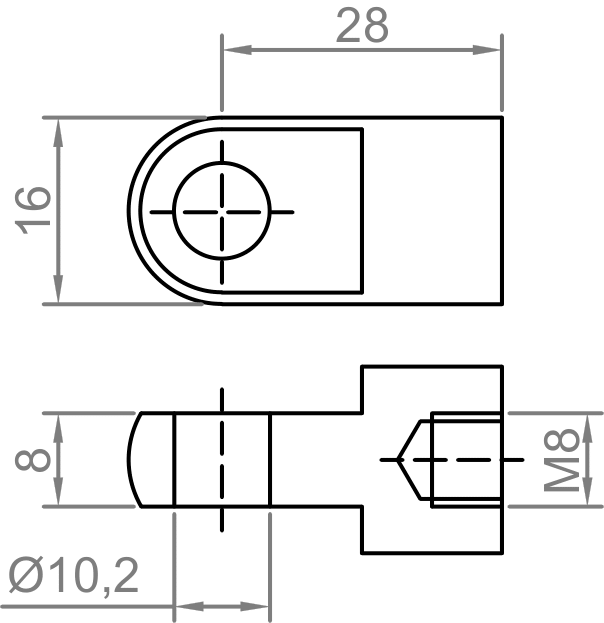

EYES-YB-Y024
FEATURES Y024
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S21, S22, W22
Components Y024
Weight 0.023 KG
Download
3D View

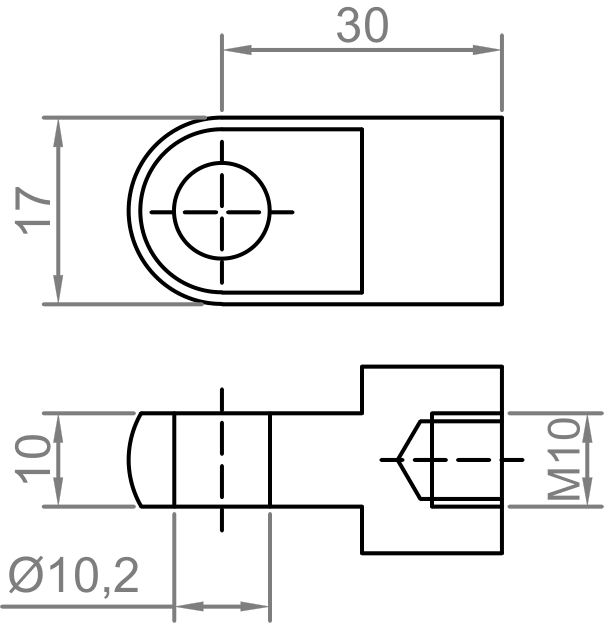

EYES-YB-Y038
FEATURES Y038
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S21, S22, S26, S27, S28
Components Y038
Weight 0.04 KG
Download
3D View
EYES-YB-Y039
FEATURES Y039
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S21, S22, S26, S27, S28
Components Y039
Weight 0.04 KG
Download
3D View

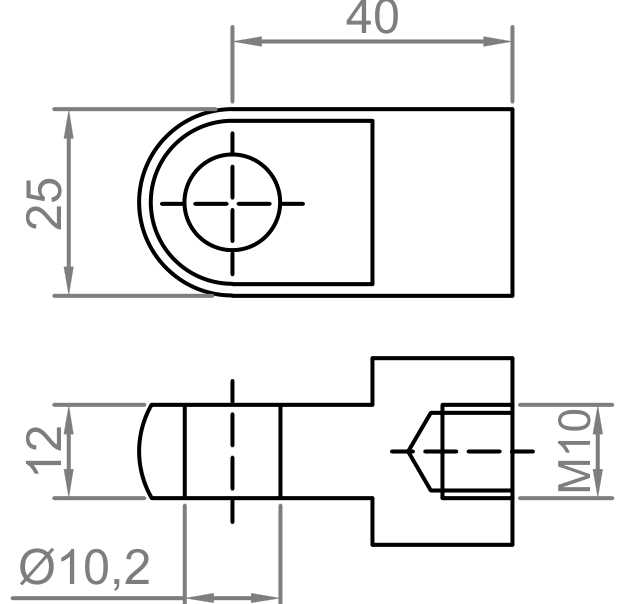

EYES-YB-Y048
FEATURES Y048
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S21, S22, S26, S27, S28
Components Y048
Weight 0.057 KG
Download
3D View

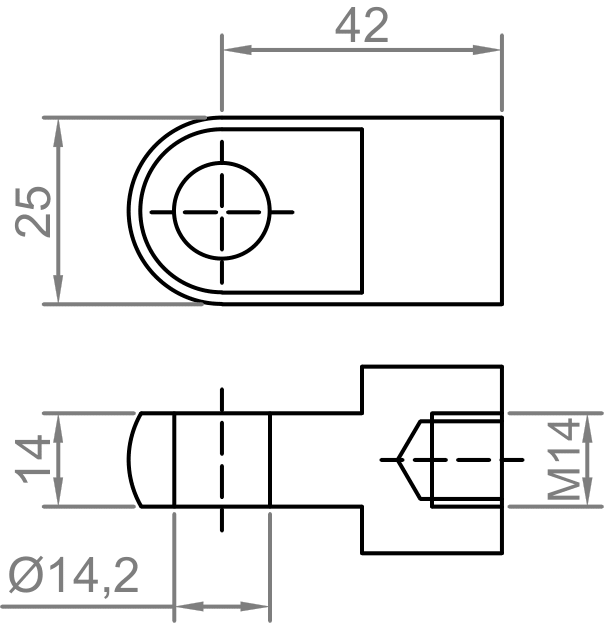

EYES-YB-Y409
FEATURES Y409
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S40
Components Y409
Weight 0.019 KG
Download
3D View

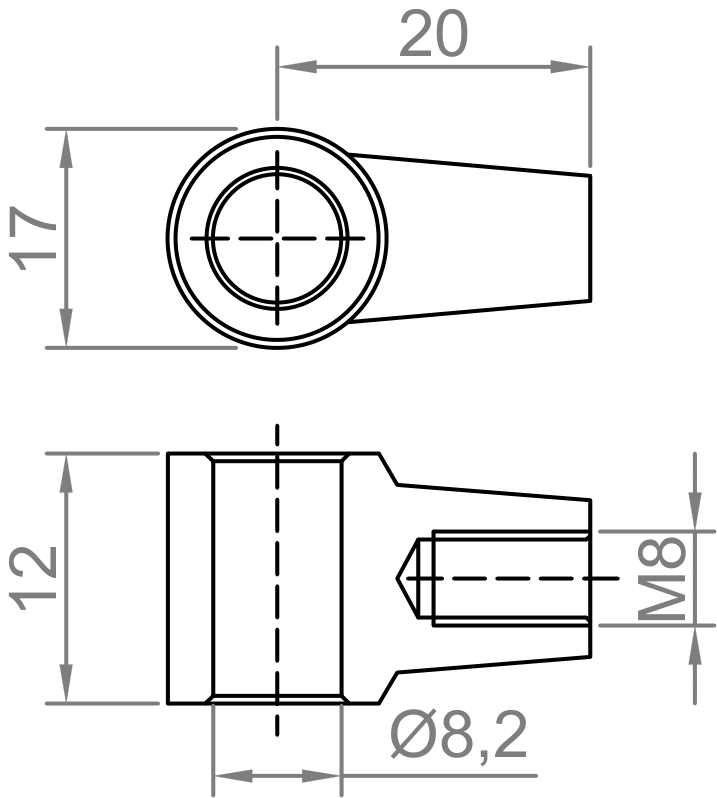

EYES-ZY-Z008
FEATURES Z008
Material Information Zamac 5 alloy
Surface Treatment Zinc Plated
Compatible With S18, D18, W18, S21, S22, S26, S27
Components Z008
Weight 0.02 KG
Download
3D View
EYES-ZY-Z300
FEATURES Z300
Material Information Zamac 5 alloy
Surface Treatment Zinc Plated
Compatible With S18, D18, W18, S21, S22, S26, S27
Components Z300
Weight 0.028 KG
Download
3D View

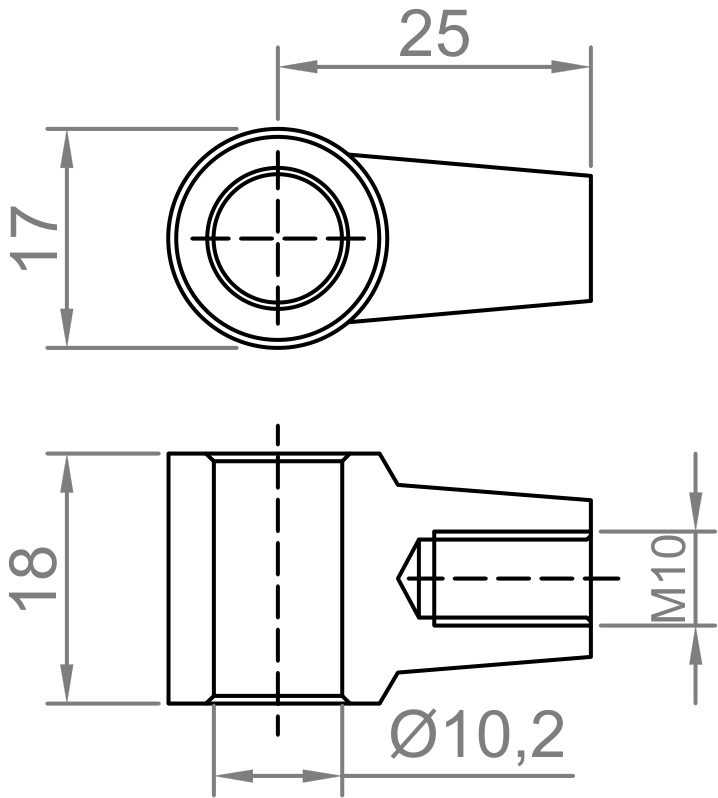

EYES-ZY-Z301
FEATURES Z301
Material Information Zamac 5 alloy
Surface Treatment Zinc Plated
Compatible With S22, S26, S27, S28
Components Z301
Weight 0.028 KG
Download
EYES-ZT-Z112
FEATURES Z112
Material Information Zamac 5 alloy
Surface Treatment Zinc Plated
Compatible With S15, D15, S18, D18, W18
Components Z112
Weight 0.035 KG
Download
3D View

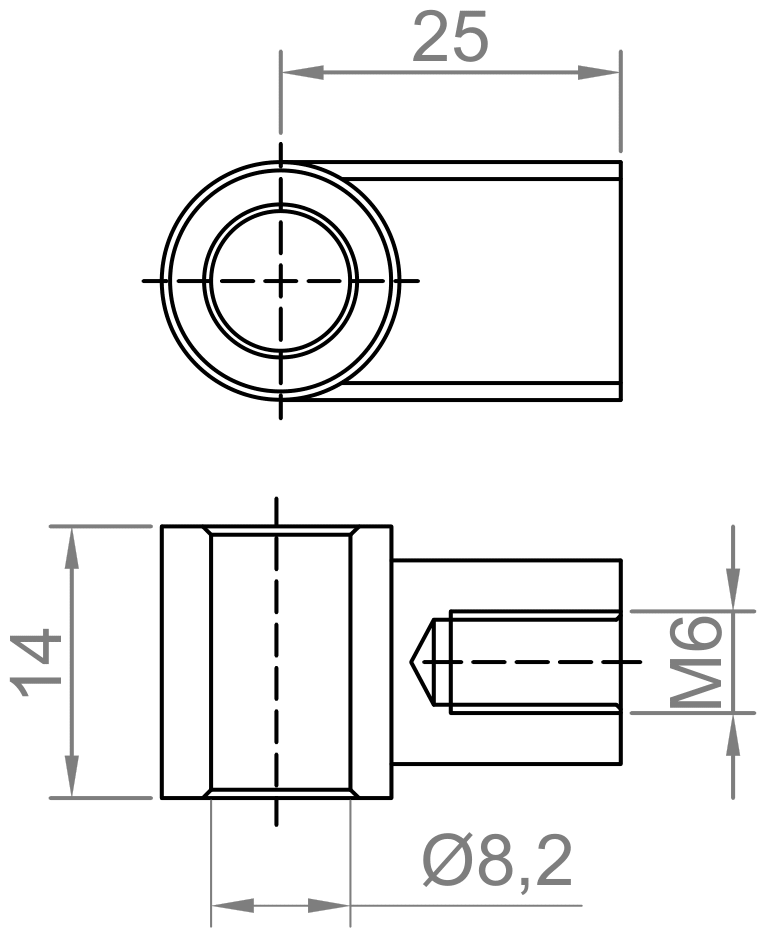

EYES-ZT-Z119
FEATURES Z119
Material Information Zamac 5 alloy
Surface Treatment Zinc Plated
Compatible With S15, D15, S18, D18, W18
Components Z119
Weight 0.04 KG
Download
3D View
EYES-ZT-Z012
FEATURES Z012
Material Information Zamac 5 alloy
Surface Treatment Zinc Plated
Compatible With S21, S22, S26, S27
Components Z012
Weight 0.039 KG
Download
3D View
EYES-ZT-Z014
FEATURES Z014
Material Information Zamac 5 alloy
Surface Treatment Zinc Plated
Compatible With S21, S22, S26, S27
Components Z014
Weight 0.039 KG
Download
3D View

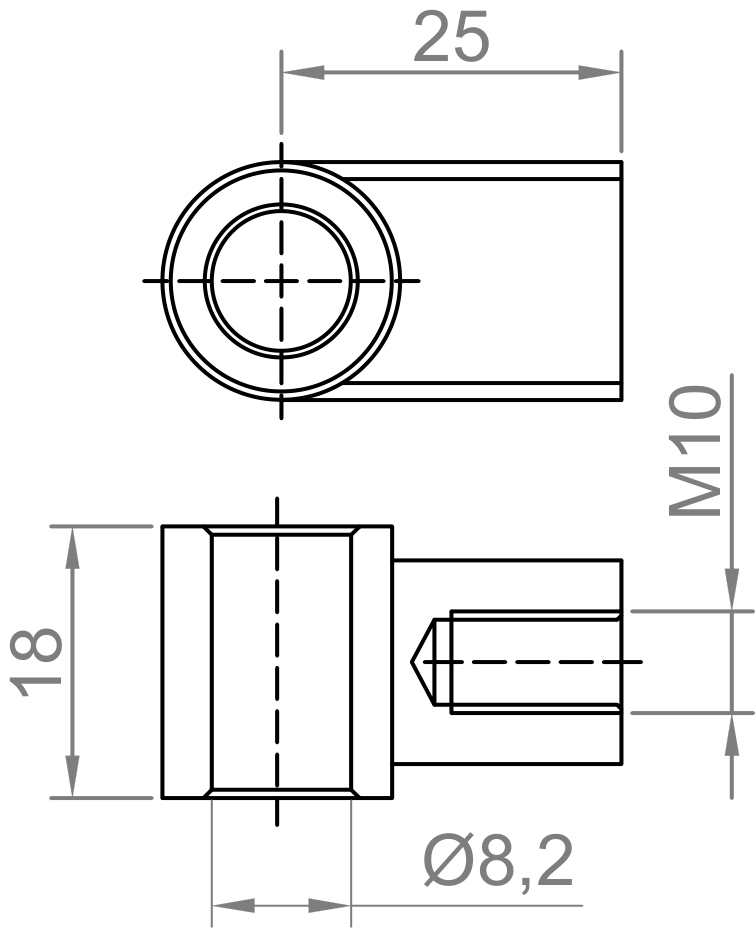

EYES-ZT-Z113
FEATURES Z113
Material Information Zamac 5 alloy
Surface Treatment Zinc Plated
Compatible With S22,S26,S27,S28
Components Z113
Weight 0.039 KG
Download
3D View

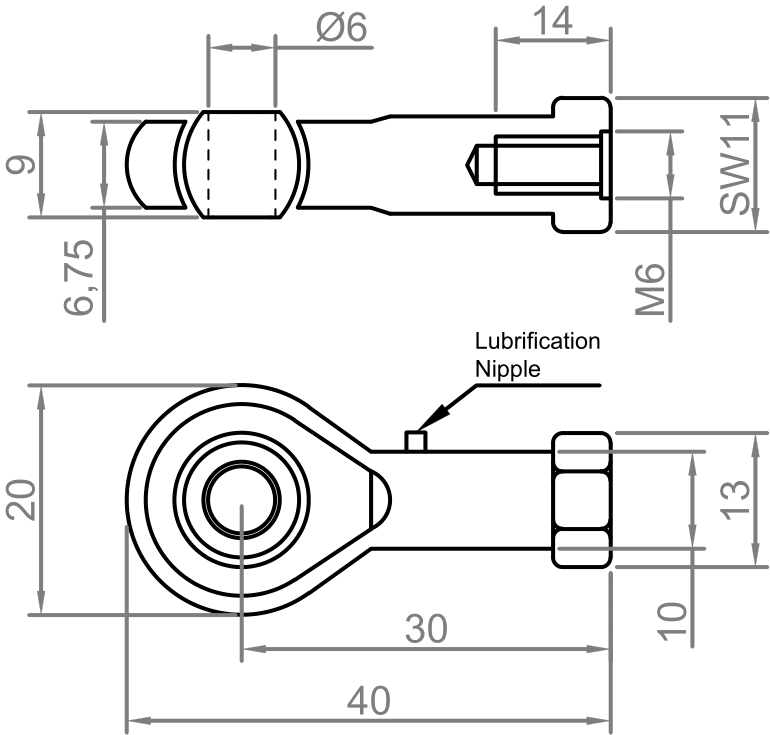

EYES-MG-MG53
FEATURES MG53
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S15, S18, D15, D18, W18
Components MG53
Weight 0.06 KG
Download
3D View
EYES-MG-MG54
FEATURES MG54
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S15, S18, D15, D18, W18
Components MG54
Weight 0.07 KG
Download
3D View
EYES-MG-MG55
FEATURES MG55
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S21, S22, W22
Components MG55
Weight 0.09 KG
Download
3D View

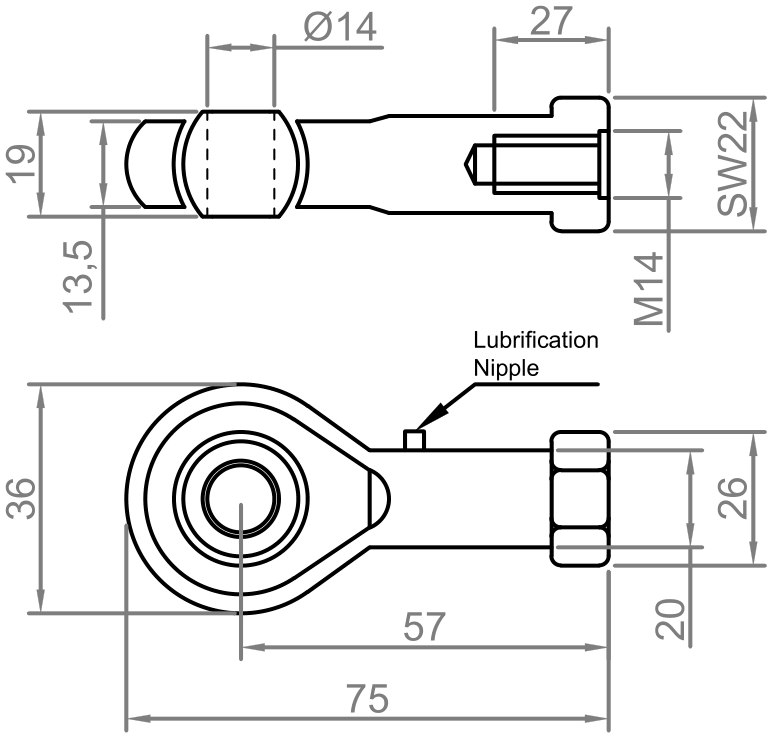

EYES-MG-MG56
FEATURES MG56
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc Plated
Compatible With S21, S22, W22
Components MG56
Weight 0.12 KG
Download
3D View
Please choose mounting type:

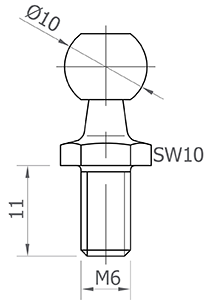

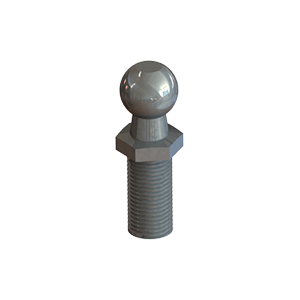

COMPONENTS-PA-PA01
FEATURES PA01
Material Information Steel ,DIN 1.0718
Surface Treatment -
Compatible With B001, B002, B005
Weight 0.009 KG
Download
3D View

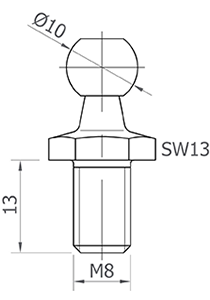

COMPONENTS-PA-PA03
FEATURES PA03
Material Information Steel ,DIN 1.0718
Surface Treatment -
Compatible With B001, B002, B005
Weight 0.012 KG
Download
3D View

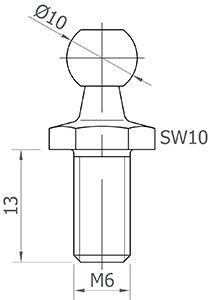

COMPONENTS-PA-PA14
FEATURES PA14
Material Information Steel ,DIN 1.0718
Surface Treatment -
Compatible With B001, B002, B005
Weight 0.009 KG
Download
3D View

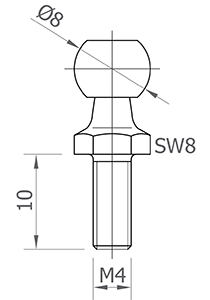

COMPONENTS-PA-PA42
FEATURES PA42
Material Information Steel ,DIN 1.0718
Surface Treatment -
Compatible With B402
Weight 0.002 KG
Download
3D View

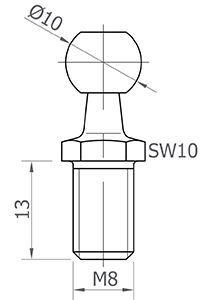

COMPONENTS-PA-PA45
FEATURES PA45
Material Information Steel ,Steel ,DIN 1.0718DIN 1.0718
Surface Treatment -
Compatible With B001, B002, B005
Weight 0.01 KG
Download
3D View

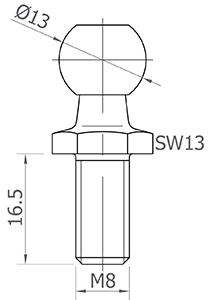

COMPONENTS-PA-PA54
FEATURES PA54
Material Information Steel ,DIN 1.0718
Surface Treatment -
Compatible With B006, B007, B074
Weight 0.017 KG
Download
3D View

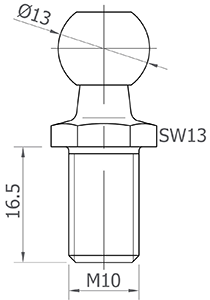

COMPONENTS-PA-PA55
FEATURES PA55
Material Information Steel ,DIN 1.0718
Surface Treatment -
Compatible With B006, B007, B074
Weight 0.021 KG
Download
3D View

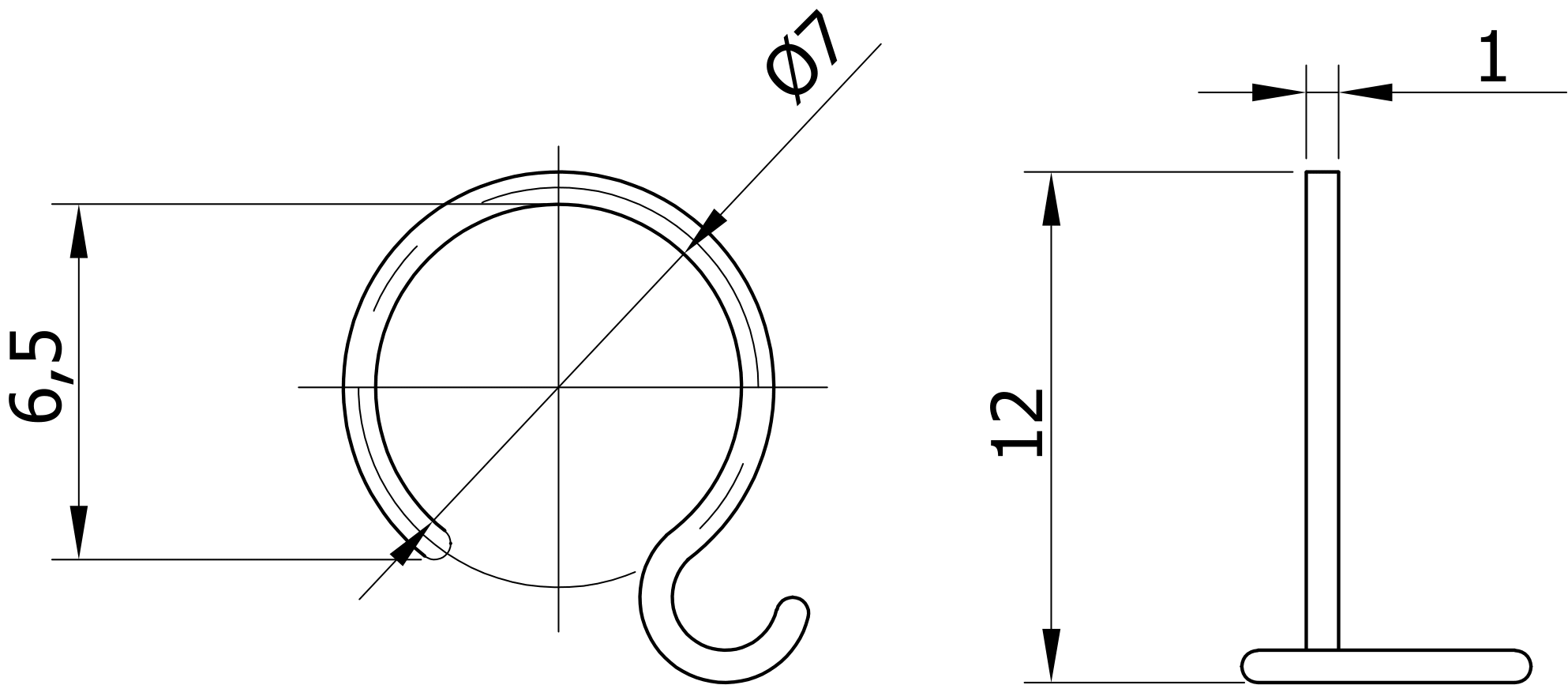

COMPONENTS-DS-DS08
FEATURES DS08
Material Information Steel ,DIN 1.0718
Surface Treatment -
Compatible With B402
Weight 0.00021 KG
Download
3D View

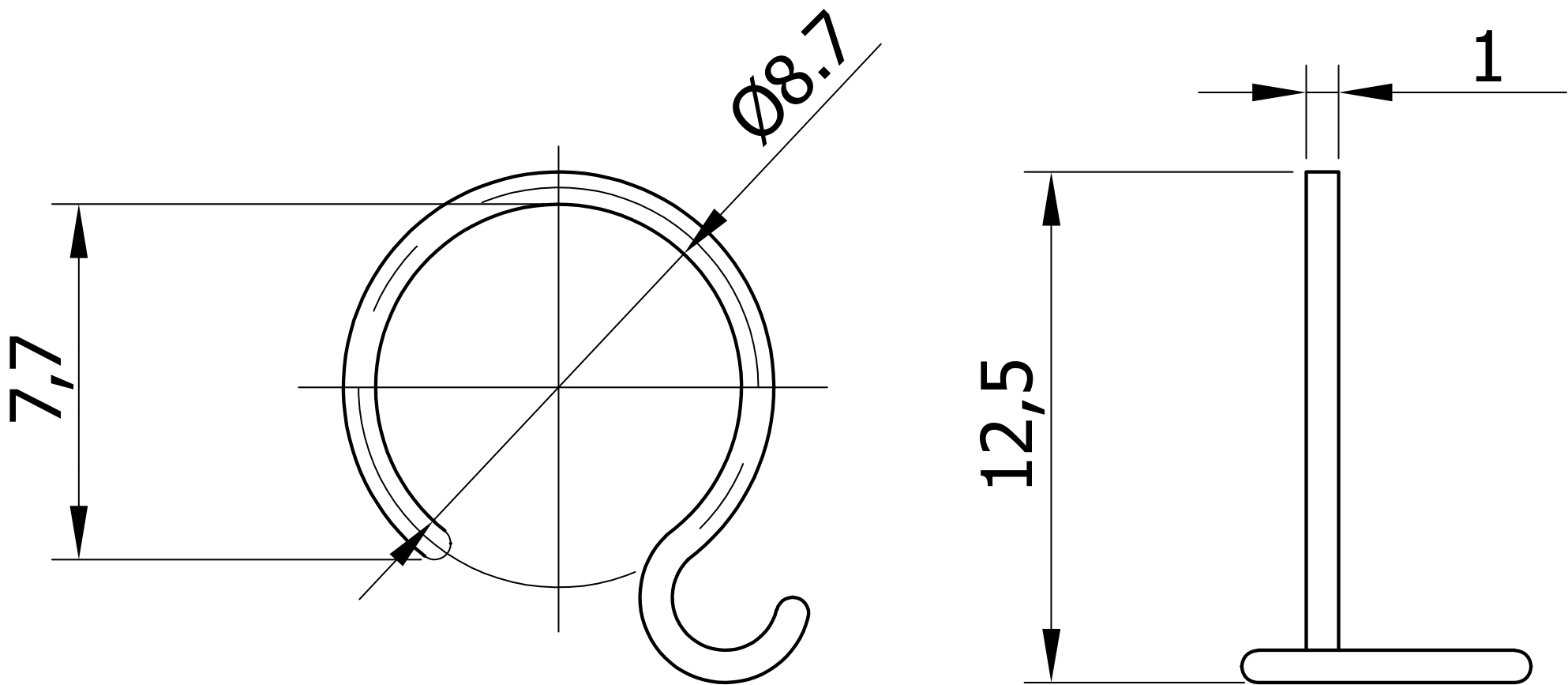

COMPONENTS-DS-DS10
FEATURES DS10
Material Information Steel ,DIN 1.0718
Surface Treatment -
Compatible With B001, B002, B005
Weight 0.00024 KG
Download
3D View

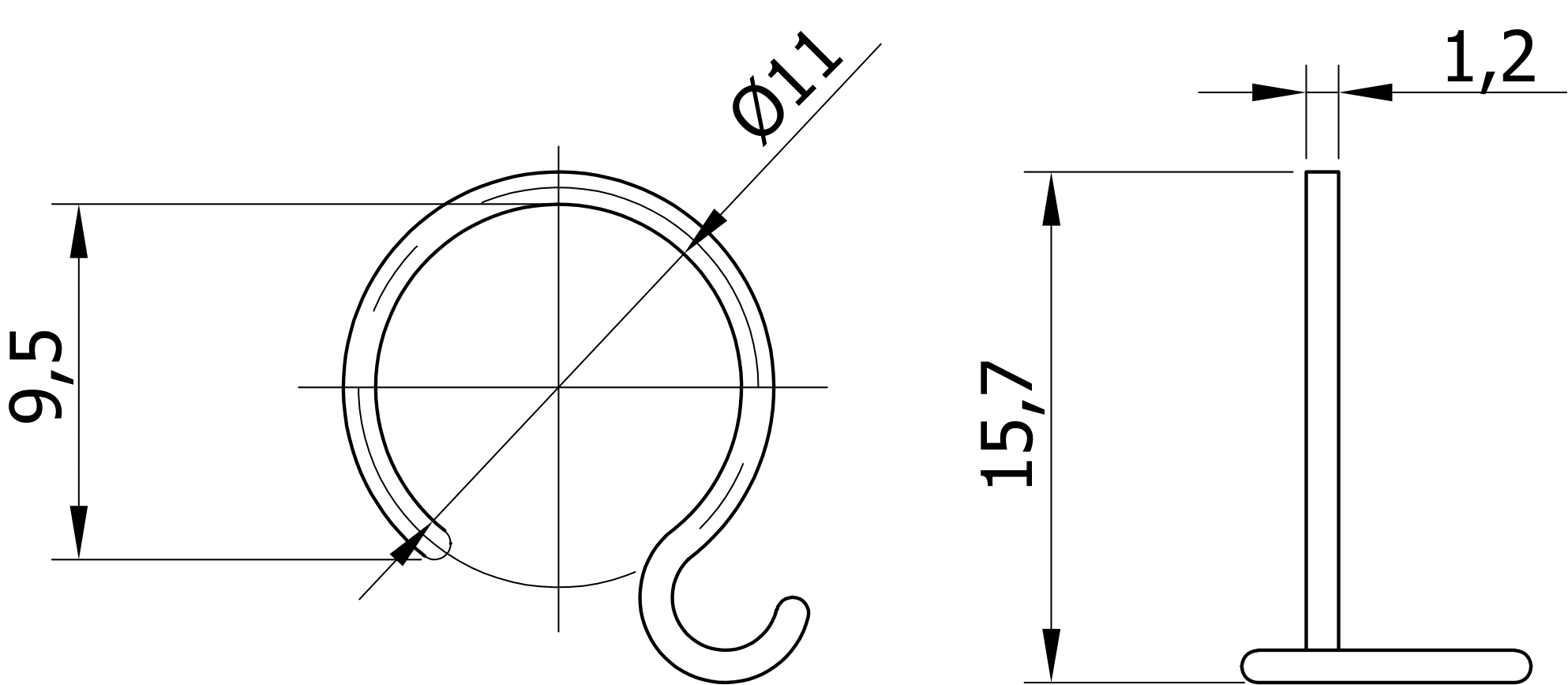

COMPONENTS-DS-DS13
FEATURES DS13
Material Information Steel ,DIN 1.0718
Surface Treatment -
Compatible With B006, B007, B074
Weight 0.00046 KG
Download
3D View

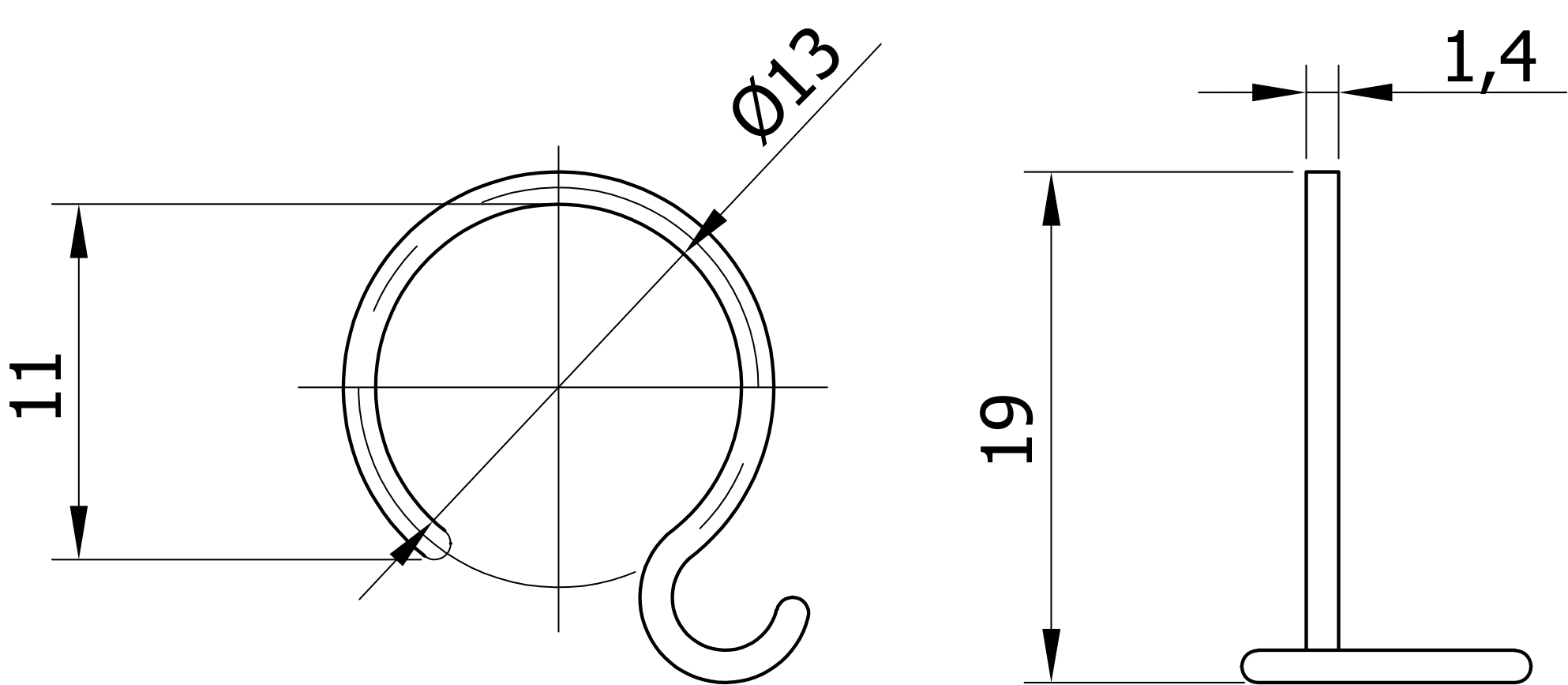

COMPONENTS-DS-DS16
FEATURES DS16
Material Information Steel ,DIN 1.0718
Surface Treatment -
Compatible With B125
Weight 0.00077 KG
Download
3D View

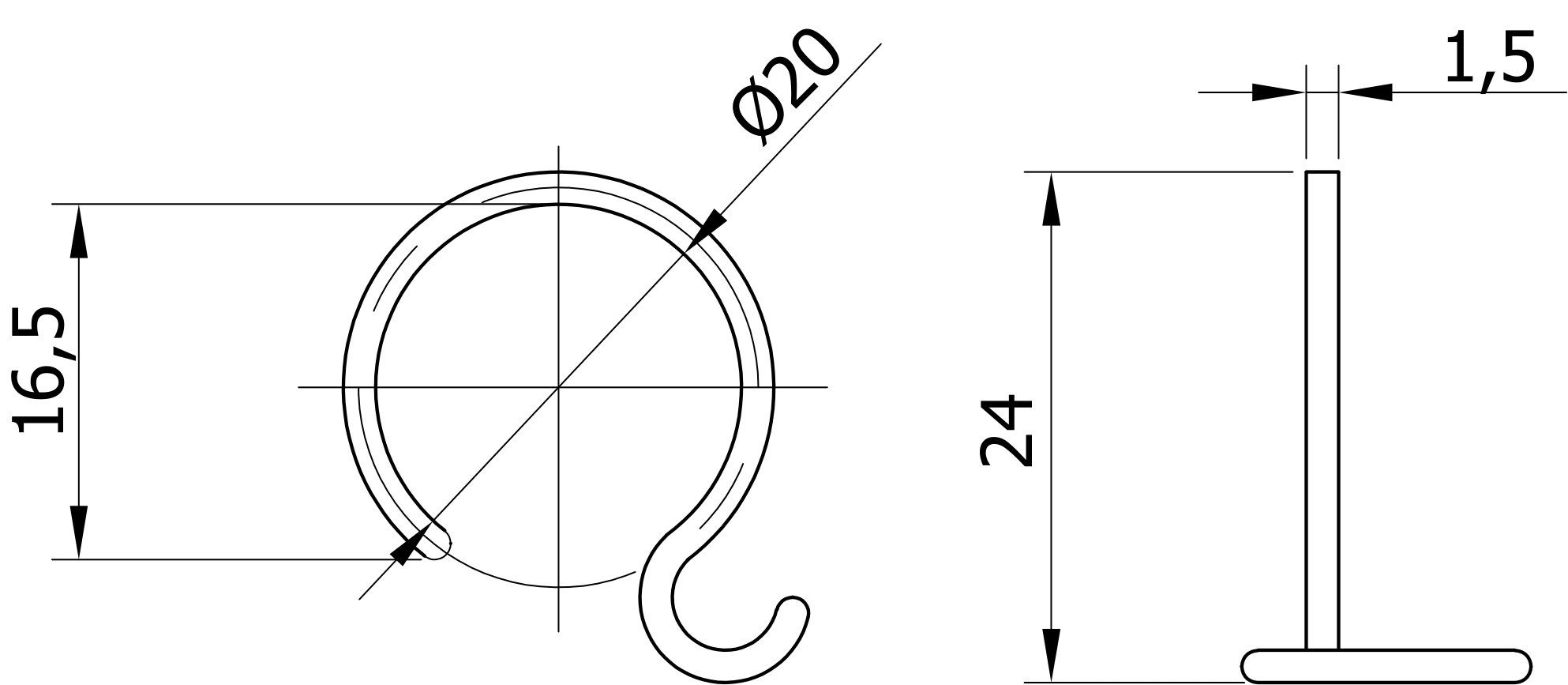

COMPONENTS-DS-DS19
FEATURES DS19
Material Information Steel ,DIN 1.0718
Surface Treatment -
Compatible With B401
Weight 0.0011 KG
Download
3D View

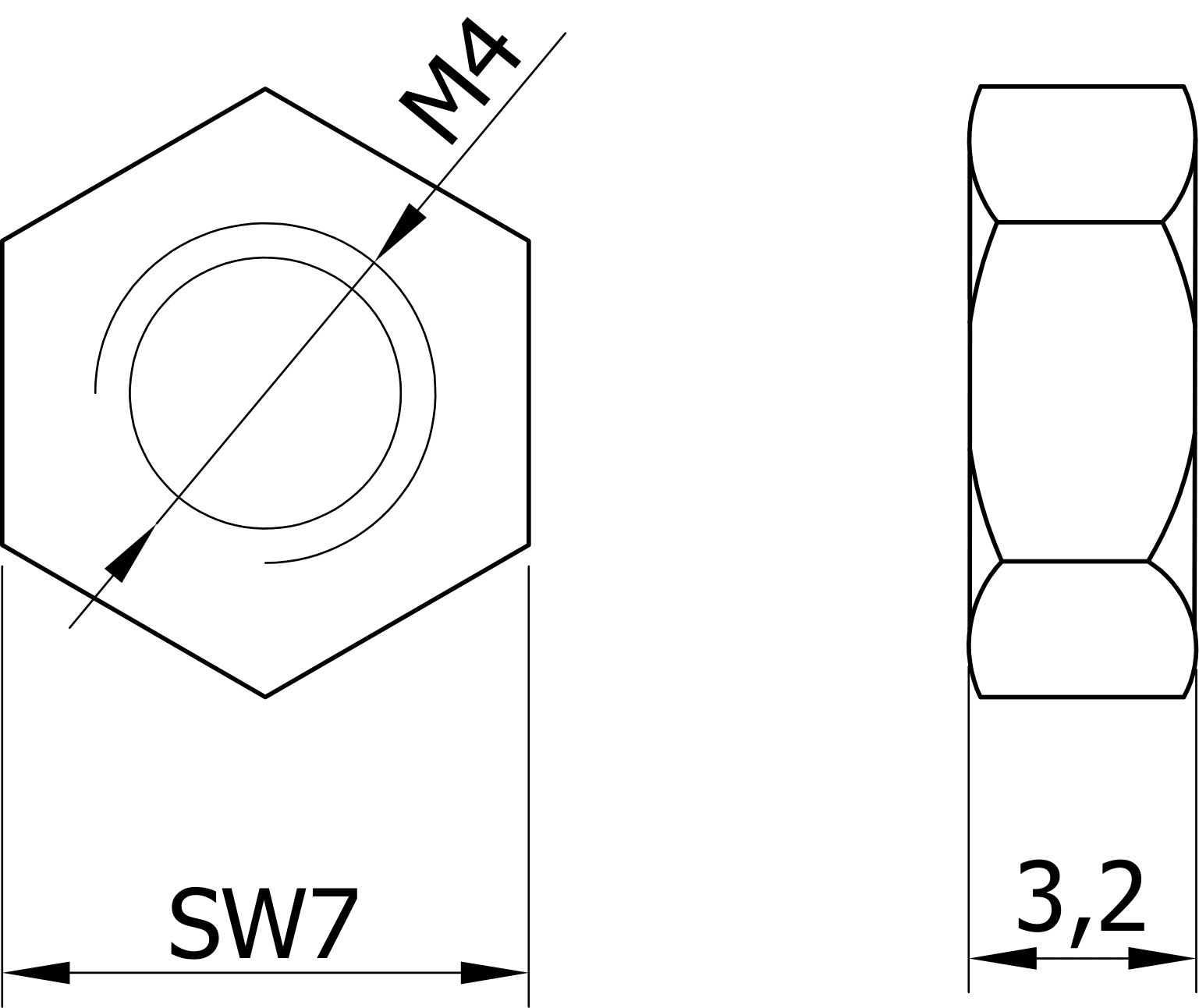

COMPONENTS-N-N02
FEATURES N02
Material Information Steel ,DIN 1.0718
Surface Treatment -
Compatible With PA42
Weight 0.00081 KG
Download
3D View

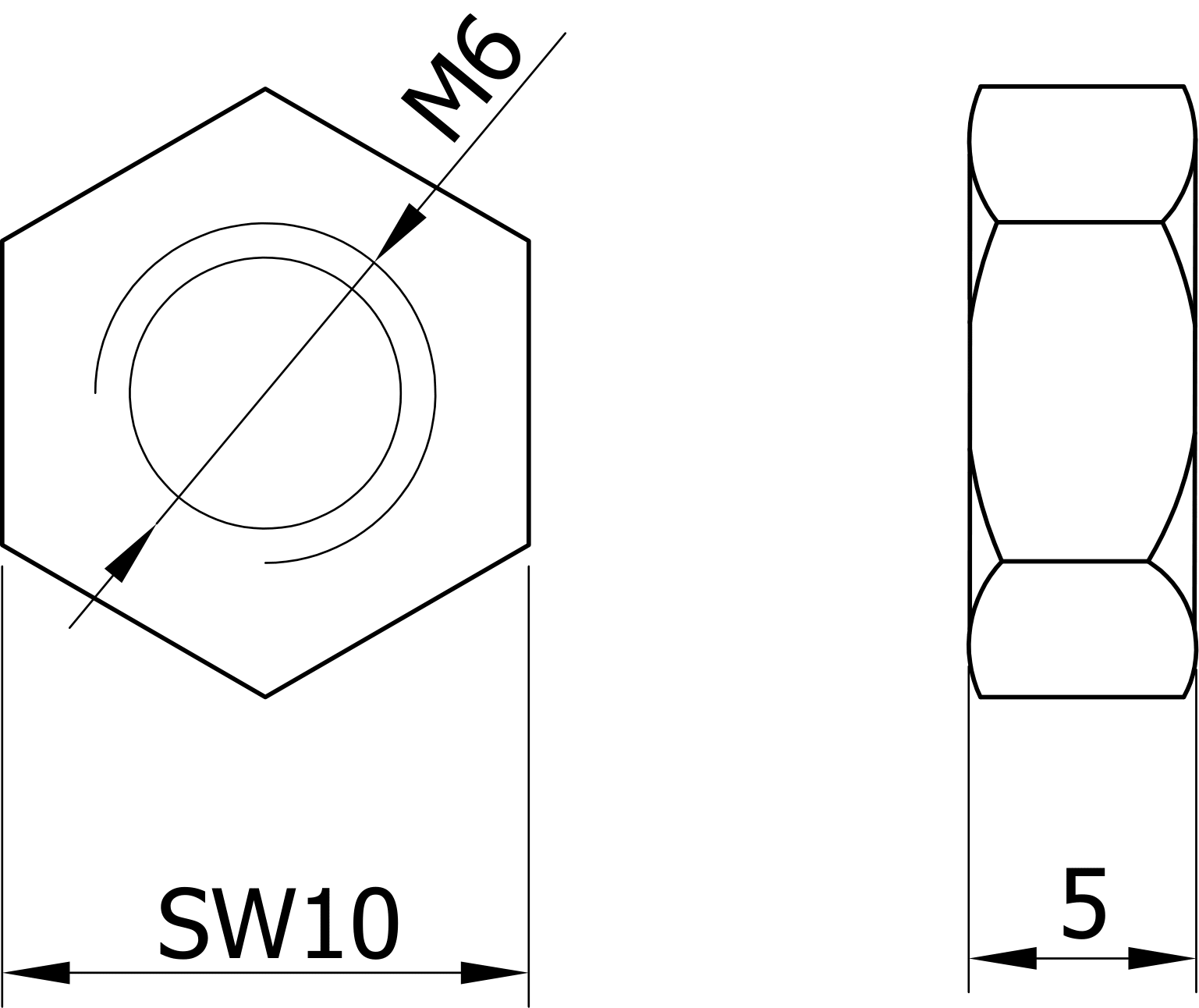

COMPONENTS-N-N04
FEATURES N04
Material Information Steel ,DIN 1.0718
Surface Treatment -
Compatible With PA01, PA14
Weight 0.0025 KG
Download
3D View

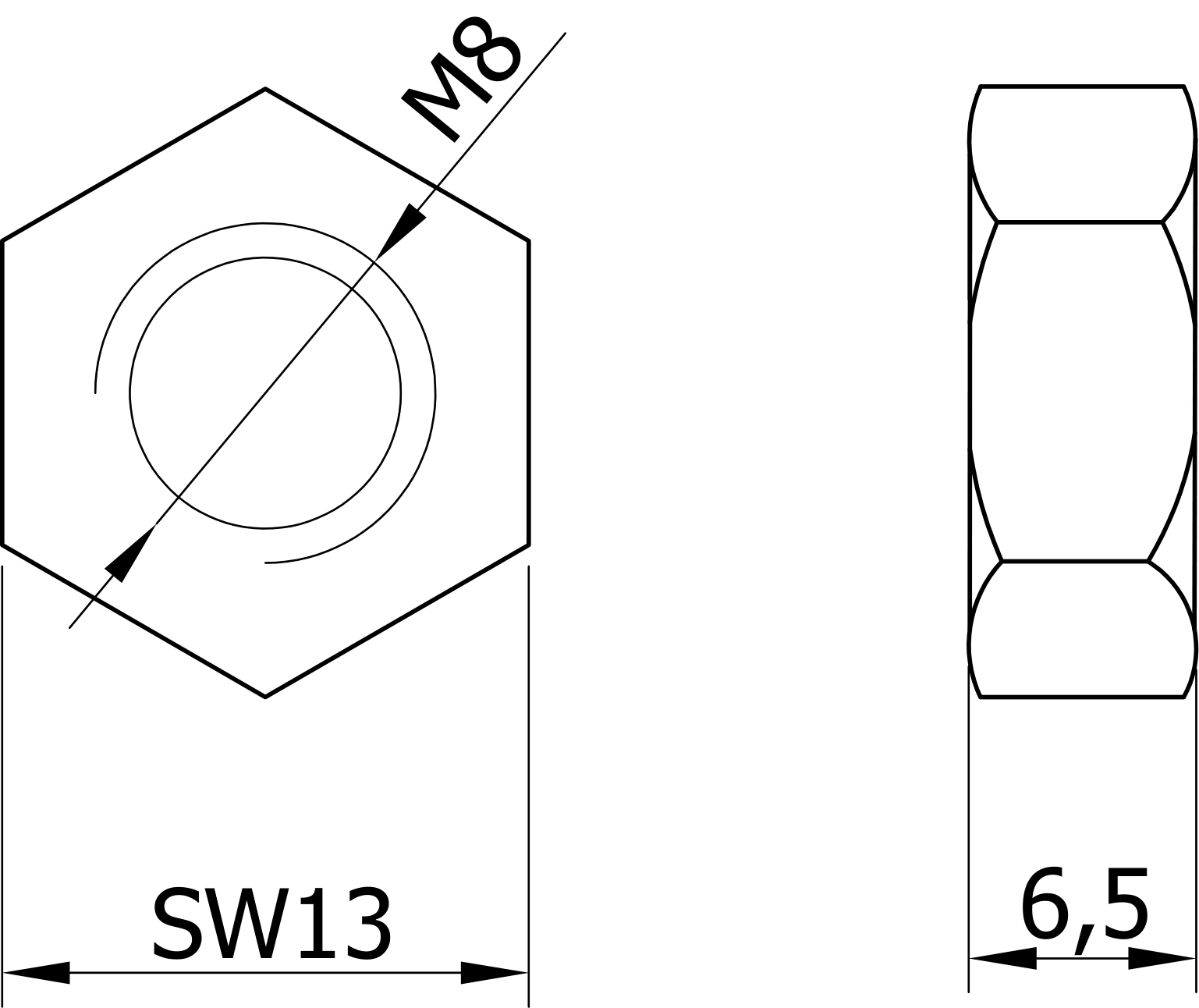

COMPONENTS-N-N05
FEATURES N05
Material Information Steel ,DIN 1.0718
Surface Treatment -
Compatible With PA03, PA45, PA54
Weight 0.0052 KG
Download
3D View

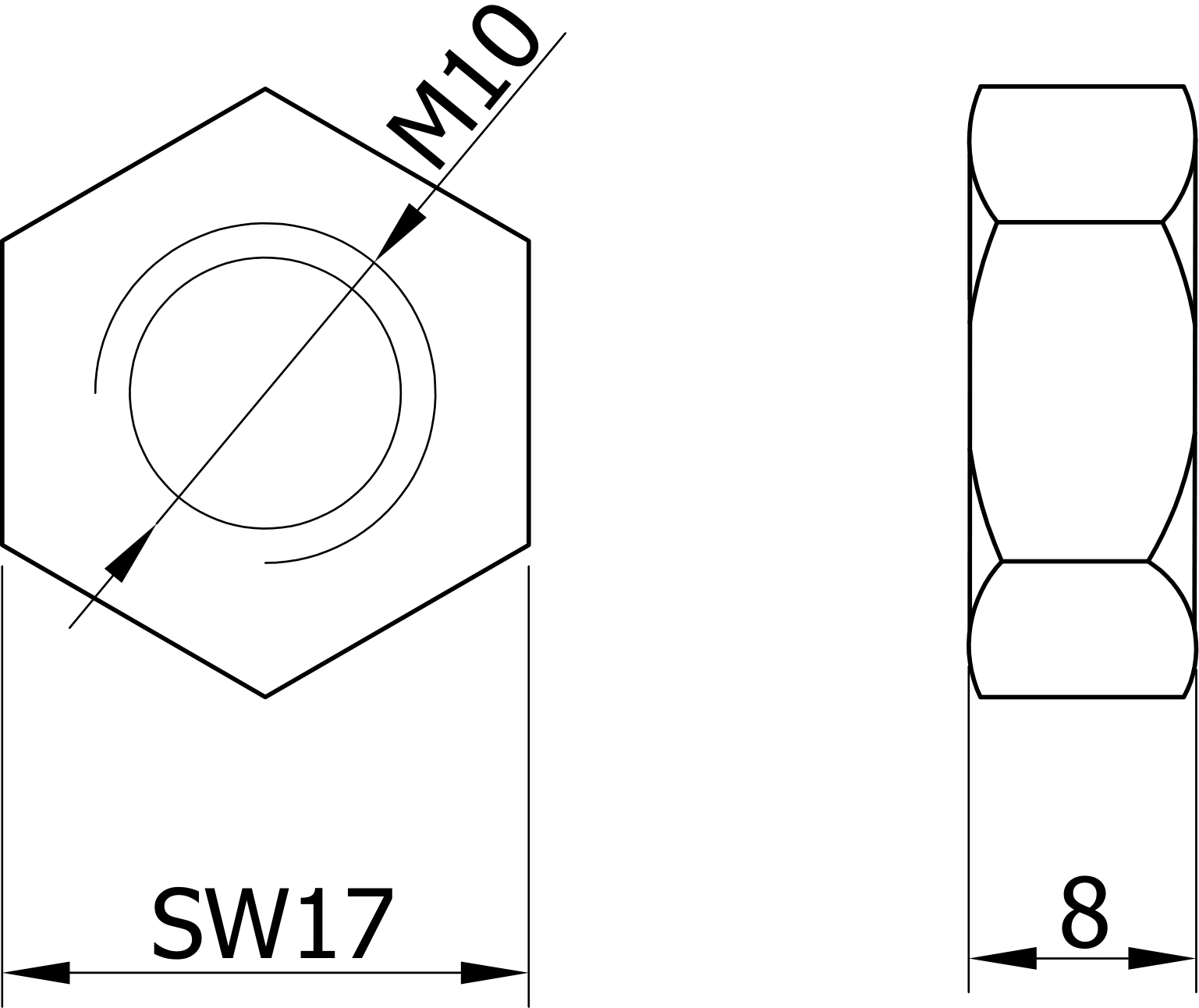

COMPONENTS-N-N06
FEATURES N06
Material Information Steel ,DIN 1.0718
Surface Treatment -
Compatible With PA55
Weight 0.0116 KG
Download
3D View

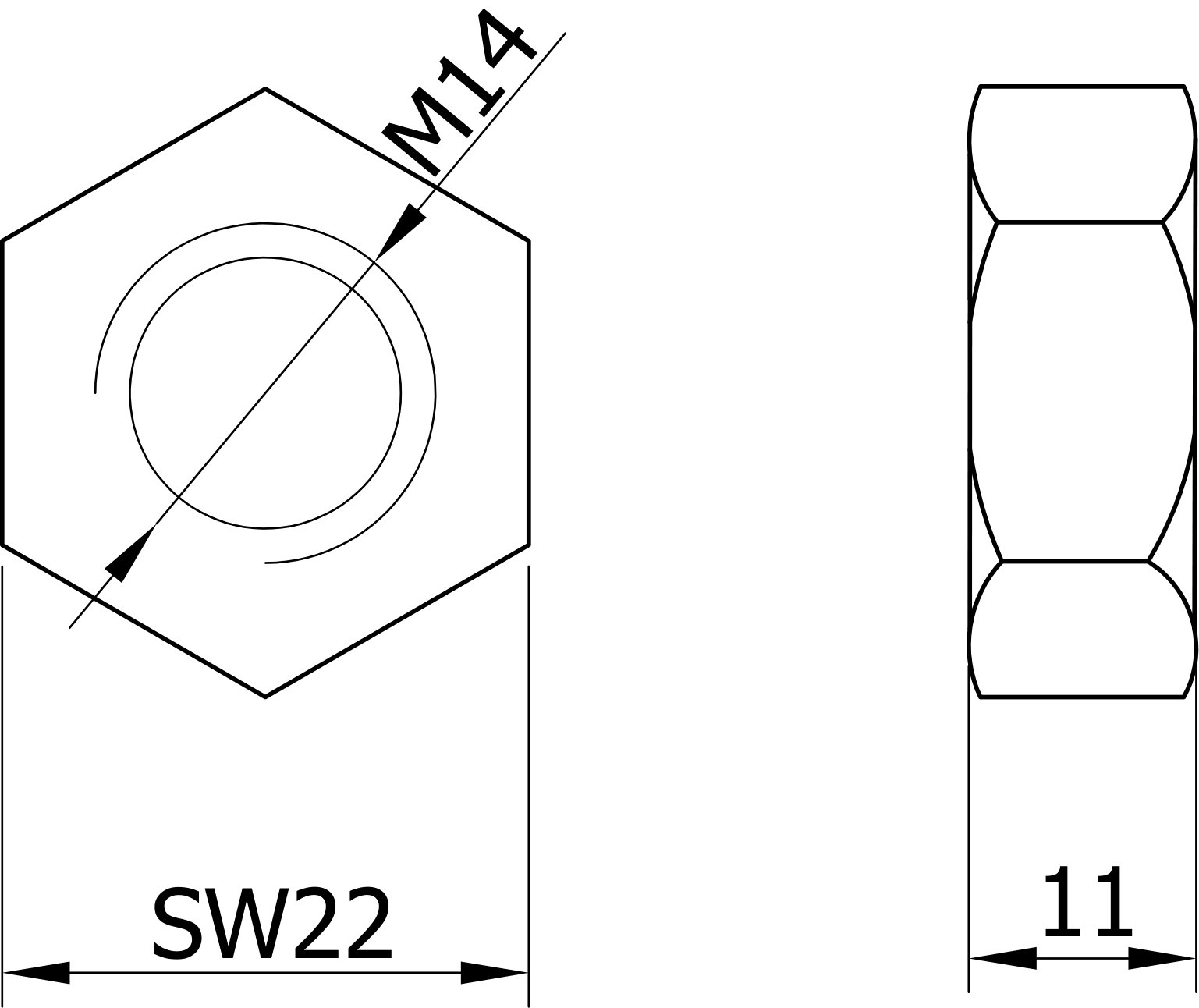

COMPONENTS-N-N08
FEATURES N08
Material Information Steel ,DIN 1.0718
Surface Treatment -
Compatible With -
Weight - KG
Download
3D View

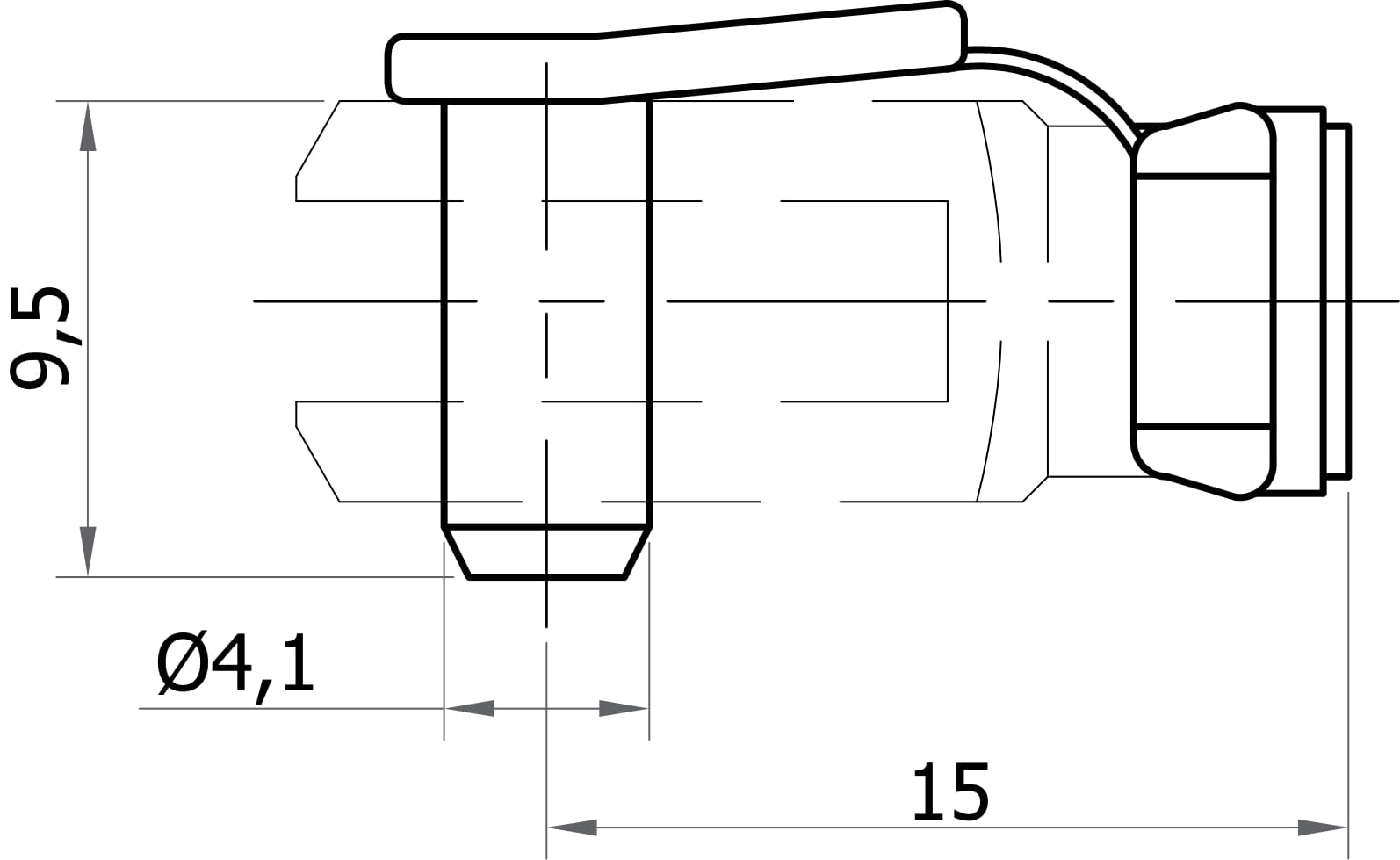

COMPONENTS-CF-CF01
FEATURES CF01
Material Information Steel ,DIN 1.0718
Surface Treatment -
Compatible With F020
Weight 0.002 KG
Download
3D View

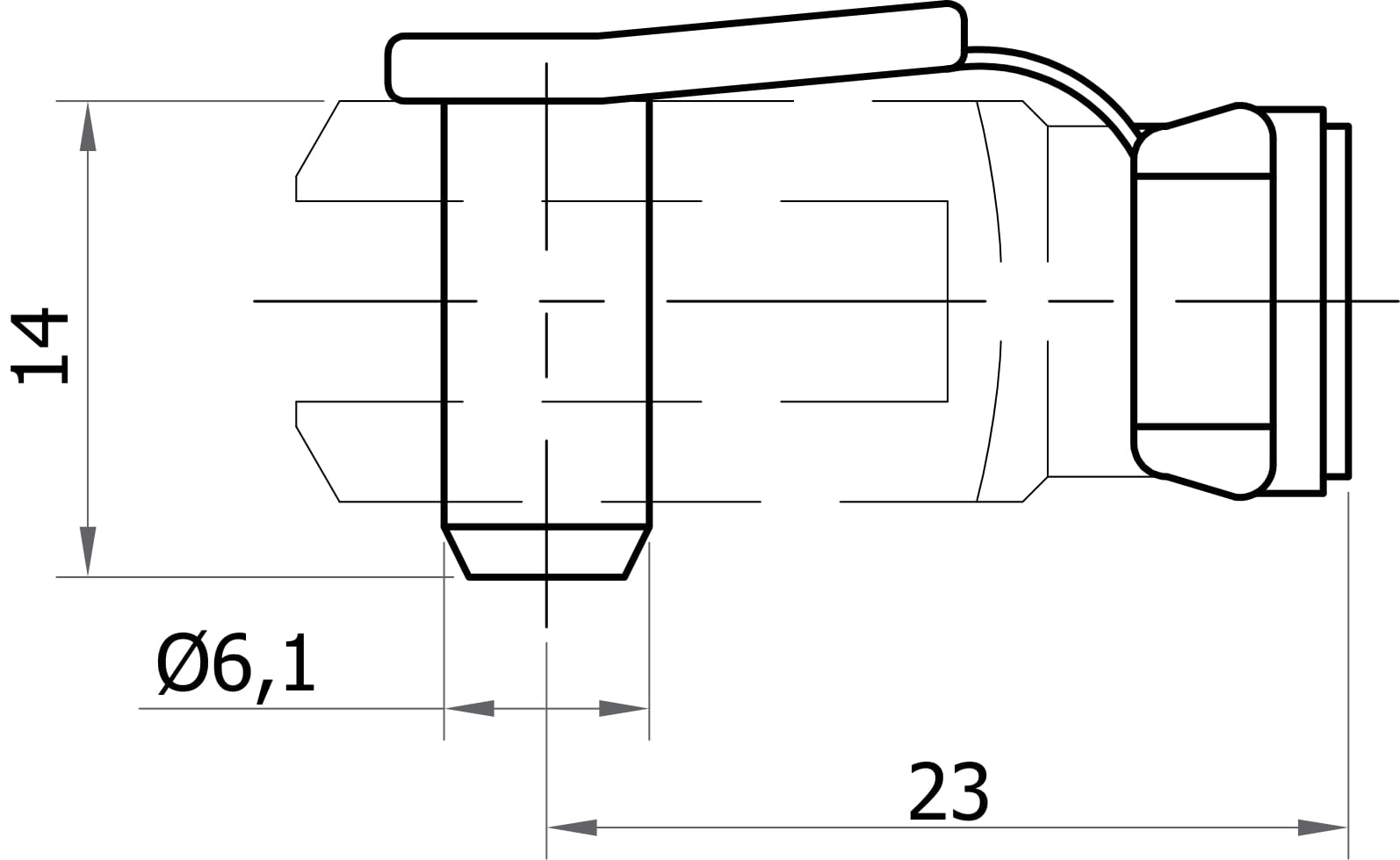

COMPONENTS-CF-CF05
FEATURES CF05
Material Information Steel ,DIN 1.0718
Surface Treatment -
Compatible With F001
Weight 0.005 KG
Download
3D View
COMPONENTS-CF-CF07
FEATURES CF07
Material Information Steel ,DIN 1.0718
Surface Treatment -
Compatible With F005
Weight 0.011 KG
Download
3D View

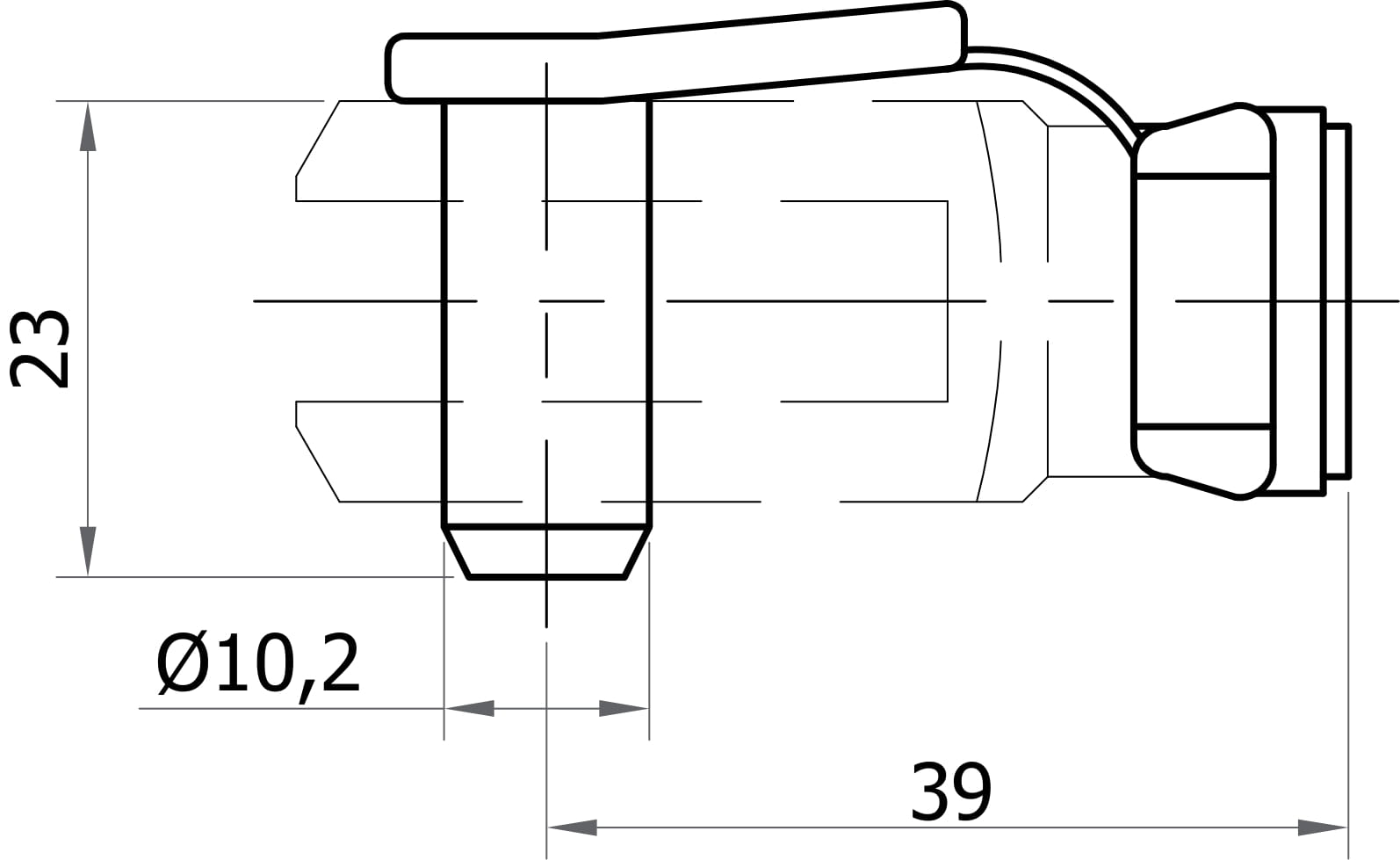

COMPONENTS-CF-CF09
FEATURES CF09
Material Information Steel ,DIN 1.0718
Surface Treatment -
Compatible With F034
Weight 0.019 KG
Download
3D View

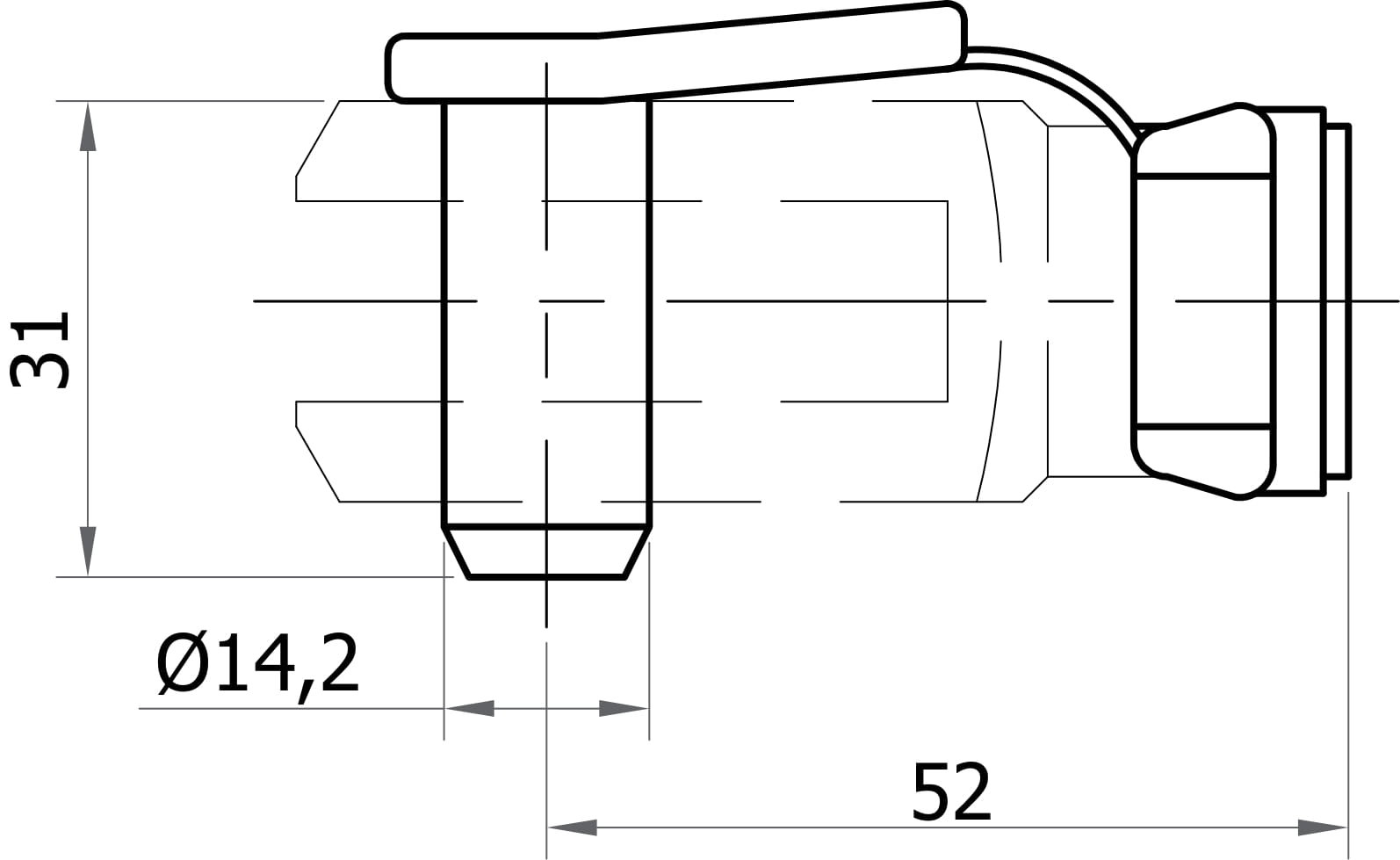

COMPONENTS-CF-CF13
FEATURES CF13
Material Information Steel ,DIN 1.0718
Surface Treatment -
Compatible With F141
Weight 0.045 KG
Download
3D View
Please choose mounting group:
Please choose mounting type:
B12068
FEATURES
BALL BRACKET-BR19-B12068
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12068 S AISI316 - B12068 S/1
Weight Pressure
0.016 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12068
Black zinc plated (Zn/Black) B12068-1
Yellow zinc plated (Zn/Yellow) B12068-2
Shiny nickel plated B12068-3
B12109
FEATURES
BALL BRACKET-BR19-B12109
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12109 S AISI316 - B12109 S/1
Weight Pressure
0.013 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12109
Black zinc plated (Zn/Black) B12109-1
Yellow zinc plated (Zn/Yellow) B12109-2
Shiny nickel plated B12109-3
B12069
FEATURES
BALL BRACKET-BR20-B12069
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12069 S AISI316 - B12069 S/1
Weight Pressure
0.055 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12069
Black zinc plated (Zn/Black) B12069-1
Yellow zinc plated (Zn/Yellow) B12069-2
Shiny nickel plated B12069-3
B12070
FEATURES
BALL BRACKET-BR20-B12070
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12070 S AISI316 - B12070 S/1
Weight Pressure
0.056 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12070
Black zinc plated (Zn/Black) B12070-1
Yellow zinc plated (Zn/Yellow) B12070-2
Shiny nickel plated B12070-3
B12016
FEATURES
BALL BRACKET-BR1-B12016
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12016 S AISI316 - B12016 S/1
Weight Pressure
0.048 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12016
Black zinc plated (Zn/Black) B12016-1
Yellow zinc plated (Zn/Yellow) B12016-2
Shiny nickel plated B12016-3
B12019
FEATURES
BALL BRACKET-BR2-B12019
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12019 S AISI316 - B12019 S/1
Weight Pressure
0.055 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12019
Black zinc plated (Zn/Black) B12019-1
Yellow zinc plated (Zn/Yellow) B12019-2
Shiny nickel plated B12019-3
B12026
FEATURES
BALL BRACKET-BR4-B12026
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12026 S AISI316 - B12026 S/1
Weight Pressure
0.062 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12026
Black zinc plated (Zn/Black) B12026-1
Yellow zinc plated (Zn/Yellow) B12026-2
Shiny nickel plated B12026-3
B12036
FEATURES
BALL BRACKET-BR8-B12036
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12036 S AISI316 - B12036 S/1
Weight Pressure
0.034 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12036
Black zinc plated (Zn/Black) B12036-1
Yellow zinc plated (Zn/Yellow) B12036-2
Shiny nickel plated B12036-3
B12050
FEATURES
BALL BRACKET-BR13-B12050
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12050 S AISI316 - B12050 S/1
Weight Pressure
0.02 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12050
Black zinc plated (Zn/Black) B12050-1
Yellow zinc plated (Zn/Yellow) B12050-2
Shiny nickel plated B12050-3
B12022
FEATURES
BALL BRACKET-BR3-B12022
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12022 S AISI316 - B12022 S/1
Weight Pressure
0.048 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12022
Black zinc plated (Zn/Black) B12022-1
Yellow zinc plated (Zn/Yellow) B12022-2
Shiny nickel plated B12022-3
B12029
FEATURES
BALL BRACKET-BR5-B12029
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12029 S AISI316 - B12029 S/1
Weight Pressure
0.062 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12029
Black zinc plated (Zn/Black) B12029-1
Yellow zinc plated (Zn/Yellow) B12029-2
Shiny nickel plated B12029-3
B12039
FEATURES
BALL BRACKET-BR9-B12039
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12039 S AISI316 - B12039 S/1
Weight Pressure
0.034 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12039
Black zinc plated (Zn/Black) B12039-1
Yellow zinc plated (Zn/Yellow) B12039-2
Shiny nickel plated B12039-3
B12051
FEATURES
BALL BRACKET-BR14-B12051
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12051 S AISI316 - B12051 S/1
Weight Pressure
0.018 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12051
Black zinc plated (Zn/Black) B12051-1
Yellow zinc plated (Zn/Yellow) B12051-2
Shiny nickel plated B12051-3
B12120
FEATURES
BALL BRACKET-BR18-B12120
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12120 S AISI316 - B12120 S/1
Weight Pressure
0.02 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12120
Black zinc plated (Zn/Black) B12120-1
Yellow zinc plated (Zn/Yellow) B12120-2
Shiny nickel plated B12120-3
BR12120
FEATURES
BALL BRACKET-BR48-BR12120
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - BR12120 S AISI316 - BR12120 S/1
Weight Pressure
KG - N
Surface Treatment Part No
White zinc plated (Zn/White) BR12120
Black zinc plated (Zn/Black) BR12120-1
Yellow zinc plated (Zn/Yellow) BR12120-2
Shiny nickel plated BR12120-3
Please choose mounting type:
B12107
FEATURES
EYE BRACKET-BR39-B12107
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12107 S AISI316 - B12107 S/1
Weight Pressure
0.055 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12107
Black zinc plated (Zn/Black) B12107-1
Yellow zinc plated (Zn/Yellow) B12107-2
Shiny nickel plated B12107-3
B12108
FEATURES
EYE BRACKET-BR39-B12108
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12108 S AISI316 - B12108 S/1
Weight Pressure
0.056 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12108
Black zinc plated (Zn/Black) B12108-1
Yellow zinc plated (Zn/Yellow) B12108-2
Shiny nickel plated B12108-3
B12077
FEATURES
EYE BRACKET-BR23-B12077
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12077 S AISI316 - B12077 S/1
Weight Pressure
0.057 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12077
Black zinc plated (Zn/Black) B12077-1
Yellow zinc plated (Zn/Yellow) B12077-2
Shiny nickel plated B12077-3
B12082
FEATURES
EYE BRACKET-BR26-B12082
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12082 S AISI316 - B12082 S/1
Weight Pressure
0.031 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12082
Black zinc plated (Zn/Black) B12082-1
Yellow zinc plated (Zn/Yellow) B12082-2
Shiny nickel plated B12082-3
B12083
FEATURES
EYE BRACKET-BR26-B12083
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12083 S AISI316 - B12083 S/1
Weight Pressure
0.032 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12083
Black zinc plated (Zn/Black) B12083-1
Yellow zinc plated (Zn/Yellow) B12083-2
Shiny nickel plated B12083-3
B12084
FEATURES
EYE BRACKET-BR27-B12084
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12084 S AISI316 - B12084 S/1
Weight Pressure
0.031 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12084
Black zinc plated (Zn/Black) B12084-1
Yellow zinc plated (Zn/Yellow) B12084-2
Shiny nickel plated B12084-3
B12085
FEATURES
EYE BRACKET-BR27-B12085
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12085 S AISI316 - B12085 S/1
Weight Pressure
0.032 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12085
Black zinc plated (Zn/Black) B12085-1
Yellow zinc plated (Zn/Yellow) B12085-2
Shiny nickel plated B12085-3
B12042
FEATURES
EYE BRACKET-BR10-B12042
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12042 S AISI316 - B12042 S/1
Weight Pressure
0.06 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12042
Black zinc plated (Zn/Black) B12042-1
Yellow zinc plated (Zn/Yellow) B12042-2
Shiny nickel plated B12042-3
B12111
FEATURES
EYE BRACKET-BR11-B12111
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12111 S AISI316 - B12111 S/1
Weight Pressure
0.079 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12111
Black zinc plated (Zn/Black) B12111-1
Yellow zinc plated (Zn/Yellow) B12111-2
Shiny nickel plated B12111-3
B12044
FEATURES
EYE BRACKET-BR11-B12044
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12044 S AISI316 - B12044 S/1
Weight Pressure
0.087 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12044
Black zinc plated (Zn/Black) B12044-1

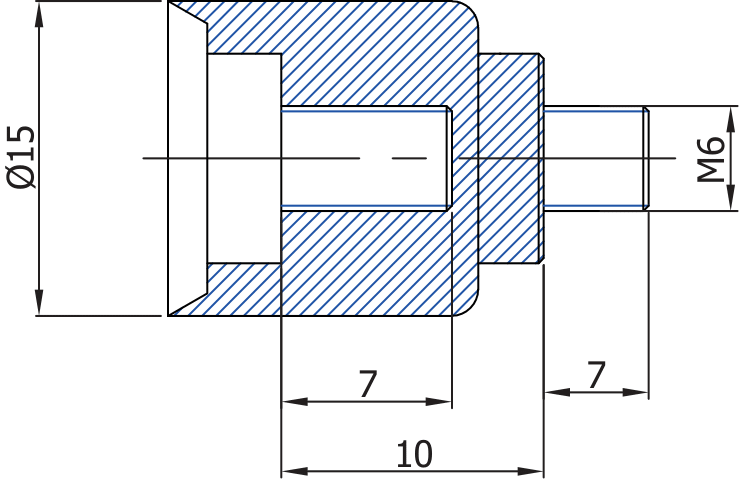

Yellow zinc plated (Zn/Yellow) B12044-2
Shiny nickel plated B12044-3

M-JOINT EXTENDERS FOR

T-MOTION Series Gas Springs

ITEM LIST

T-MOTION Series Gas Springs

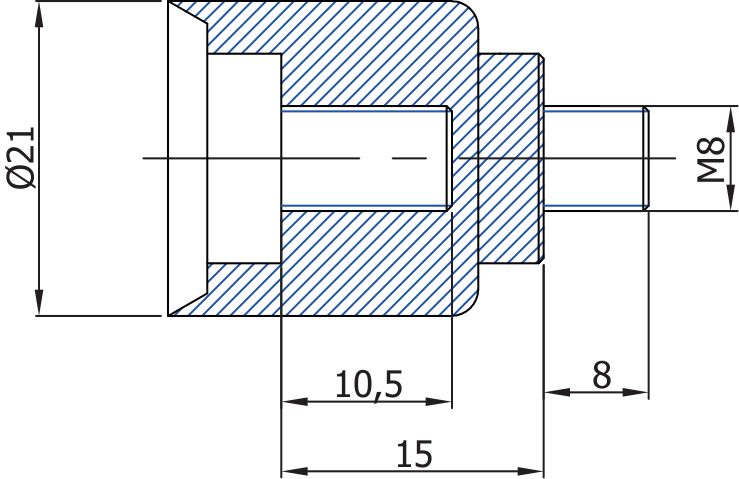

ACCESSORY-MJ-MJ15-10
FEATURES MJ15-10
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc plated
Compatible With S15
Weight 0.009 KG
Download
ACCESSORY-MJ-MJ15-15
FEATURES MJ15-15
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc plated
Compatible With S15
Weight 0.009 KG
Download

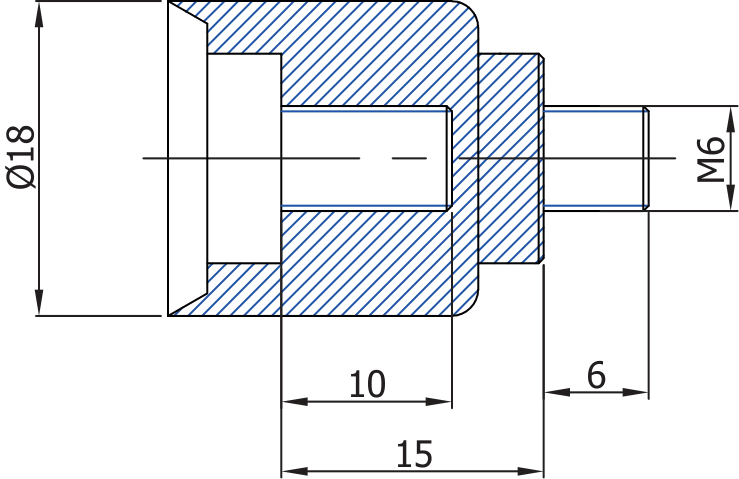

ACCESSORY-MJ-MJ18-10
FEATURES MJ18-10
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc plated
Compatible With S18
Weight 0.009 KG
Download
ACCESSORY-MJ-MJ18-15
FEATURES MJ18-15
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc plated
Compatible With S18
Weight 0.009 KG
Download
ACCESSORY-MJ-MJ21-15
FEATURES MJ21-15
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc plated
Compatible With S21
Weight 0.009 KG
Download
ACCESSORY-MJ-MJ21-20
FEATURES MJ21-20
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc plated
Compatible With S21
Weight 0.009 KG
Download

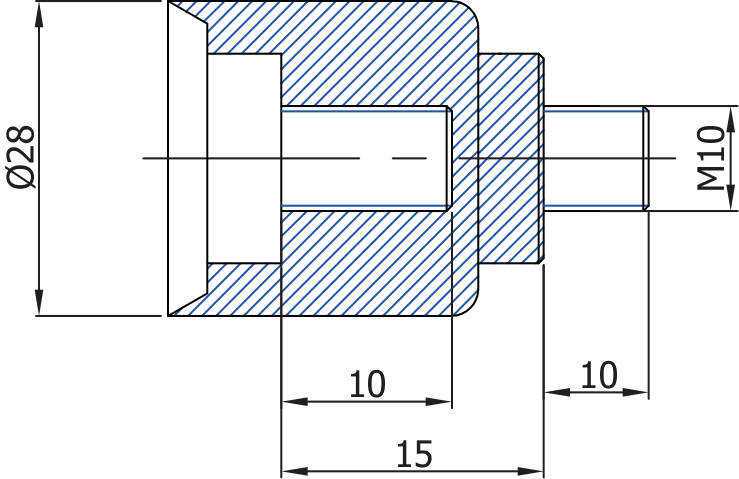

ACCESSORY-MJ-MJ28-15
FEATURES MJ28-15
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc plated
Compatible With S28
Weight 0.009 KG
Download

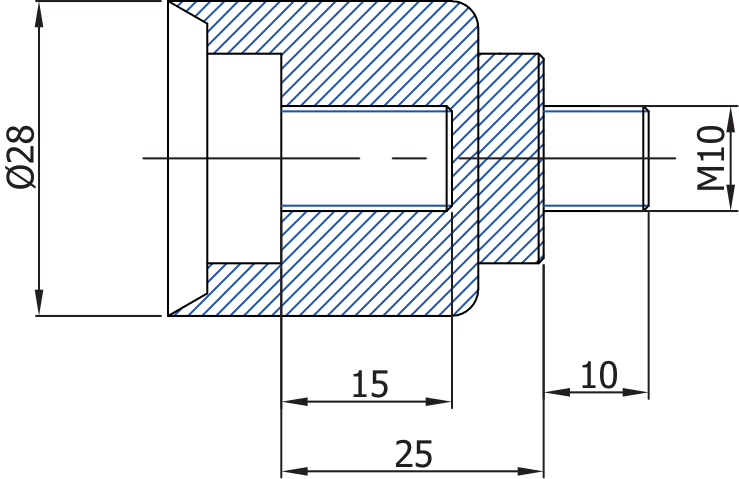

ACCESSORY-MJ-MJ28-25
FEATURES MJ28-25
Material Information Steel ,DIN 1.0718
Surface Treatment Zinc plated
Compatible With S28
Weight 0.009 KG
Download

RPT

TGS Rod Protection Tube

TGS - RPT (Rod Protection Tube) Considering its role on lifetime of gas spring, rod surface is most important part to protect from external impacts. TGS recommends usage of RPT specially in dusty environment.

Item FOR ØD L Max Shortage
RPT18 8/18 22 S + 25 400MM
RPT21 10/21 26 S + 25 400MM
RPT28 14/28 32 S + 25 500MM

ITEM LIST

Rod Protection Tube

ACCESSORY-RPT-RPT18-50
FEATURES RPT18-50
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT18-60
FEATURES RPT18-60
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT18-75
FEATURES RPT18-75
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT18-80
FEATURES RPT18-80
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT18-90
FEATURES RPT18-90
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT18-100
FEATURES RPT18-100
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT18-120
FEATURES RPT18-120
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT18-140
FEATURES RPT18-140
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT18-150
FEATURES RPT18-150
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT18-160
FEATURES RPT18-160
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT18-170
FEATURES RPT18-170
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT18-180
FEATURES RPT18-180
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT18-200
FEATURES RPT18-200
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT18-220
FEATURES RPT18-220
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT18-250
FEATURES RPT18-250
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT21-50
FEATURES RPT21-50
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT21-75
FEATURES RPT21-75
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT21-100
FEATURES RPT21-100
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT21-125
FEATURES RPT21-125
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT21-150
FEATURES RPT21-150
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT21-175
FEATURES RPT21-175
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT21-200
FEATURES RPT21-200
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT21-225
FEATURES RPT21-225
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT21-250
FEATURES RPT21-250
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT21-275
FEATURES RPT21-275
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT21-300
FEATURES RPT21-300
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT21-325
FEATURES RPT21-325
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT21-350
FEATURES RPT21-350
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT21-375
FEATURES RPT21-375
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT21-400
FEATURES RPT21-400
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT28-50
FEATURES RPT28-50
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT28-100
FEATURES RPT28-100
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT28-150
FEATURES RPT28-150
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT28-200
FEATURES RPT28-200
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT28-250
FEATURES RPT28-250
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT28-300
FEATURES RPT28-300
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT28-350
FEATURES RPT28-350
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT28-400
FEATURES RPT28-400
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT28-450
FEATURES RPT28-450
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download
ACCESSORY-RPT-RPT28-500
FEATURES RPT28-500
Material Information Plastic
Surface Treatment -
Compatible With -
Weight - KG
Download

TSL

TGS Safety Lock

TGS Safety Lock (TSL) is an optional device which serves as external mechanical locking for T-MOTION series gas springs. TSL operates automatically with spring loaded button.

When the gas spring is in fully extended position TSL automatically blocks the moving way of the piston rod. In order to compress the gas spring back operator has to press ‘’PRESS’’ button which is made of plastic. Even though main task of TSL is to prevent non-initiative falling downs, it also serves as piston rod protector from dirt, impacts and all kind of external damages.

ITEM FOR ØD L Stroke Shortage
LT18 8/18 24 S + 8 10MM
LT21 10/21 28 S + 8 10MM
LT28 14/28 32 S + 20 10MM
Locked Position
Unlocked Position

ITEM LIST

Tube Safety Lock

ACCESSORY-TSL-LT18-50
FEATURES LT18-50
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT18-60
FEATURES LT18-60
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT18-75
FEATURES LT18-75
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT18-80
FEATURES LT18-80
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT18-90
FEATURES LT18-90
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT18-100
FEATURES LT18-100
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT18-120
FEATURES LT18-120
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT18-140
FEATURES LT18-140
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT18-150
FEATURES LT18-150
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT18-160
FEATURES LT18-160
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT18-170
FEATURES LT18-170
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT18-180
FEATURES LT18-180
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT18-200
FEATURES LT18-200
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT18-220
FEATURES LT18-220
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT18-250
FEATURES LT18-250
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT21-50
FEATURES LT21-50
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT21-75
FEATURES LT21-75
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT21-100
FEATURES LT21-100
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT21-125
FEATURES LT21-125
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT21-150
FEATURES LT21-150
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT21-175
FEATURES LT21-175
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT21-200
FEATURES LT21-200
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT21-225
FEATURES LT21-225
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT21-250
FEATURES LT21-250
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT21-275
FEATURES LT21-275
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT21-300
FEATURES LT21-300
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT21-325
FEATURES LT21-325
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT21-350
FEATURES LT21-350
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT21-375
FEATURES LT21-375
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT21-400
FEATURES LT21-400
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT28-50
FEATURES LT28-50
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT28-100
FEATURES LT28-100
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT28-150
FEATURES LT28-150
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT28-200
FEATURES LT28-200
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT28-250
FEATURES LT28-250
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT28-300
FEATURES LT28-300
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT28-350
FEATURES LT28-350
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT28-400
FEATURES LT28-400
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT28-450
FEATURES LT28-450
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT28-500
FEATURES LT28-500
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT15-80
FEATURES LT15-80
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT15-85
FEATURES LT15-85
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT15-100
FEATURES LT15-100
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT15-120
FEATURES LT15-120
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT15-150
FEATURES LT15-150
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT15-180
FEATURES LT15-180
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download
ACCESSORY-TSL-LT15-200
FEATURES LT15-200
Material Information Steel
Surface Treatment Black painted
Compatible With -
Components -
Weight - KG
Download

DUSTER FOR

T-MOTION Series Gas Springs

ACCESSORY-D-D1501
FEATURES D1501
Material Information Plastic
Surface Treatment -
Compatible With S15
Weight - KG
Download
ACCESSORY-D-D1801
FEATURES D1801
Material Information Plastic
Surface Treatment -
Compatible With S18
Weight - KG
Download
ACCESSORY-D-D2101
FEATURES D2101
Material Information Plastic
Surface Treatment -
Compatible With S21
Weight - KG
Download
ACCESSORY-D-D2201
FEATURES D2201
Material Information Plastic
Surface Treatment -
Compatible With S22
Weight - KG
Download
ACCESSORY-D-D2701
FEATURES D2701
Material Information Plastic
Surface Treatment -
Compatible With S27
Weight - KG
Download
ACCESSORY-D-D2702
FEATURES D2702
Material Information Plastic
Surface Treatment -
Compatible With S27
Weight - KG
Download

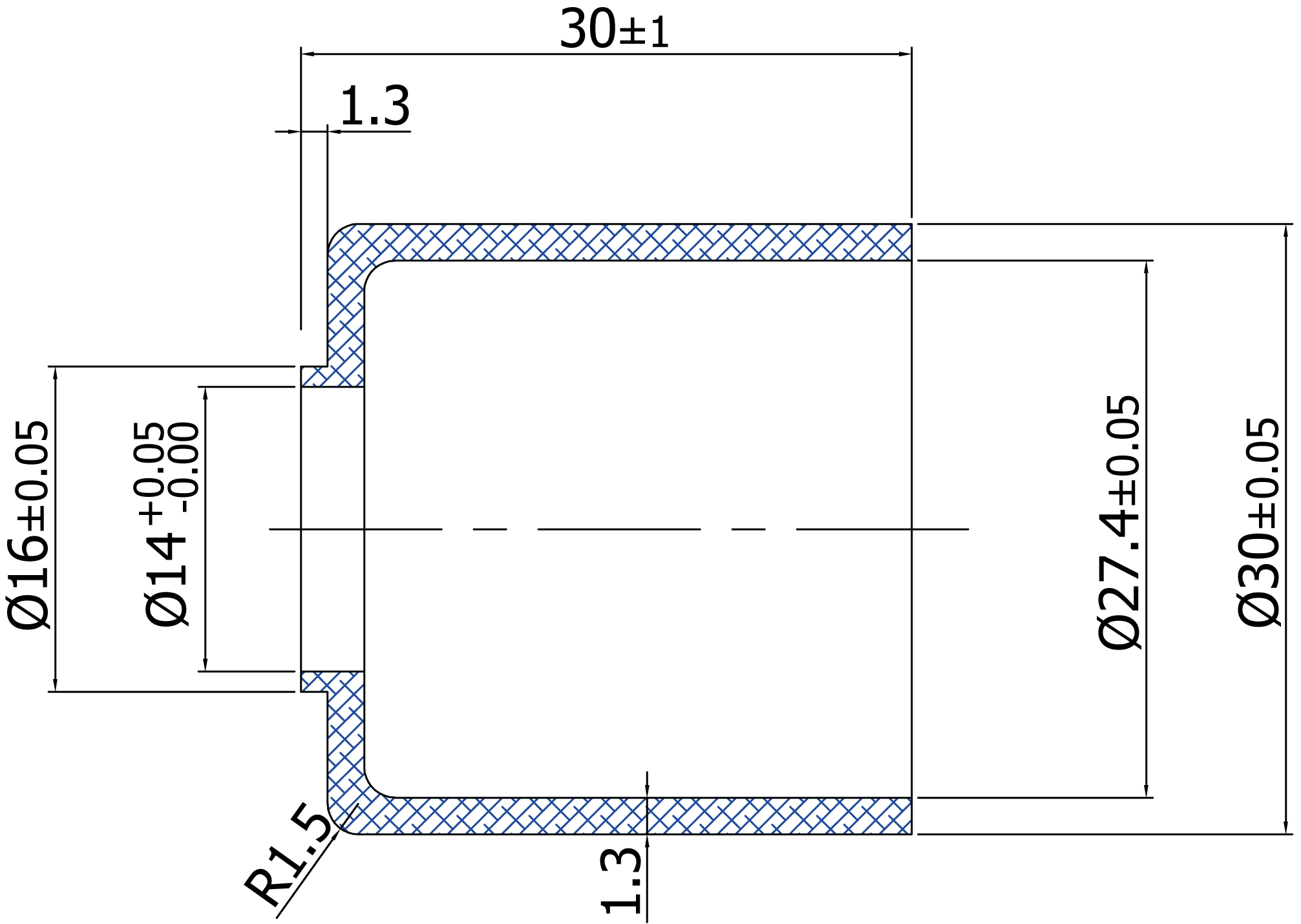

ACCESSORY-D-D2801
FEATURES D2801
Material Information Plastic
Surface Treatment -
Compatible With S28
Weight - KG
Download
ACCESSORY-D-D2802
FEATURES D2802
Material Information Plastic
Surface Treatment -
Compatible With S28
Weight - KG
Download
ACCESSORY-D-D4001
FEATURES D4001
Material Information Plastic
Surface Treatment -
Compatible With S40
Weight - KG
Download

Spring Characteristics

The spring characteristic curve shows the force path of the gas spring over the stroke,from the extended to the retracted state and back.

The spring characteristic illustrates the balance of power of F2/F1. For the design of gas springs, the force F1 is,in addition to the dimensions, the most important criterion.

The force F1 is measured 5mm before the end of the extension movement and thus defies the value of the spring force.


Pressure Tolerance Rates (F1)

Pressure F1 (N) 30 < F1 ≤ 200 200 < F1 ≤ 500 500 < F1 ≤ 1250 1250 < F1 ≤ 2000 2000 < F1 ≤ 3000 3000 < F1 ≤ 5000
Tolerance (N) + 20
- 10
+ %12
- %5
+ %8
- %2
+ %6
- %0
+ %5
- %0
+ %5
- %0

T-MOTION Catalog

Connector Catalog

Bracket Catalog
