Gas Spring Brackets

TGS gas spring brackets are made from free cutting steel and stainless steel material which are available with many surface treatment options. Additional to our standard product range we offer custom design gas spring brackets as well.


BRACKETS | Gas Spring Brackets


Please choose mounting group:
Please choose mounting type:
B12068
FEATURES
BALL BRACKET-BR19-B12068
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12068 S AISI316 - B12068 S/1
Weight Pressure
0.016 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12068
Black zinc plated (Zn/Black) B12068-1
Yellow zinc plated (Zn/Yellow) B12068-2
Shiny nickel plated B12068-3

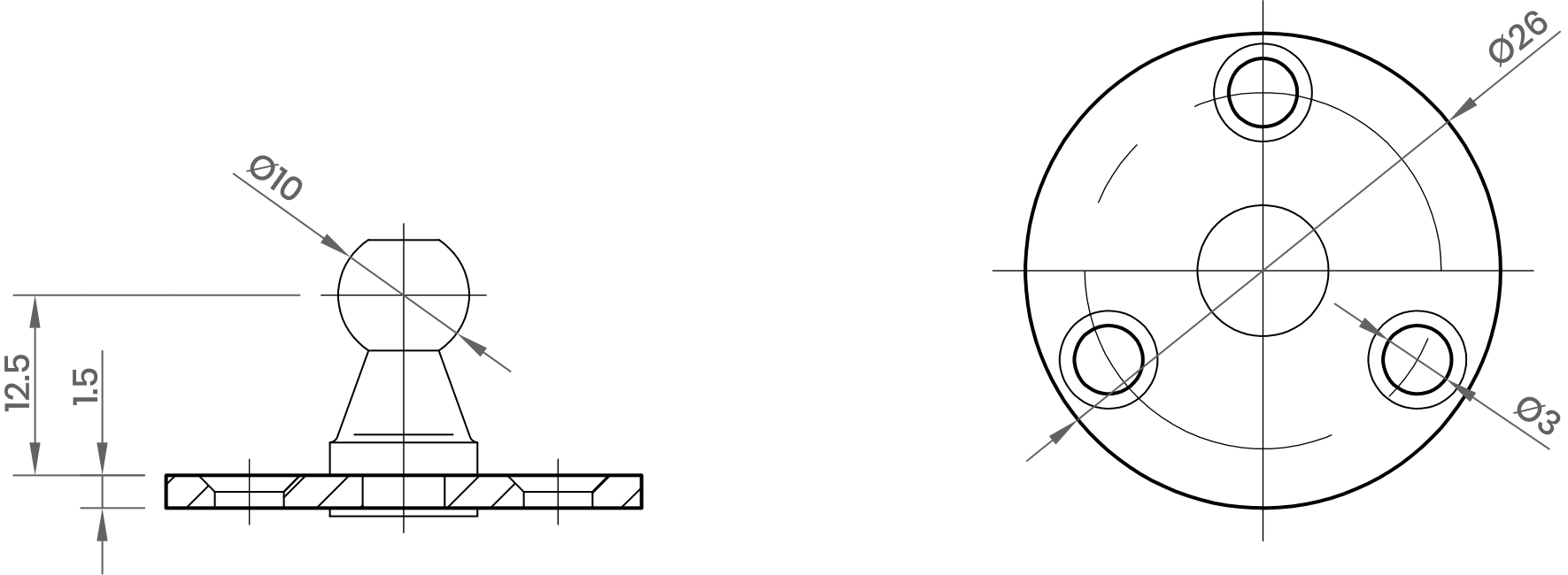

B12109
FEATURES
BALL BRACKET-BR19-B12109
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12109 S AISI316 - B12109 S/1
Weight Pressure
0.013 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12109
Black zinc plated (Zn/Black) B12109-1
Yellow zinc plated (Zn/Yellow) B12109-2
Shiny nickel plated B12109-3
B12069
FEATURES
BALL BRACKET-BR20-B12069
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12069 S AISI316 - B12069 S/1
Weight Pressure
0.055 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12069
Black zinc plated (Zn/Black) B12069-1
Yellow zinc plated (Zn/Yellow) B12069-2
Shiny nickel plated B12069-3

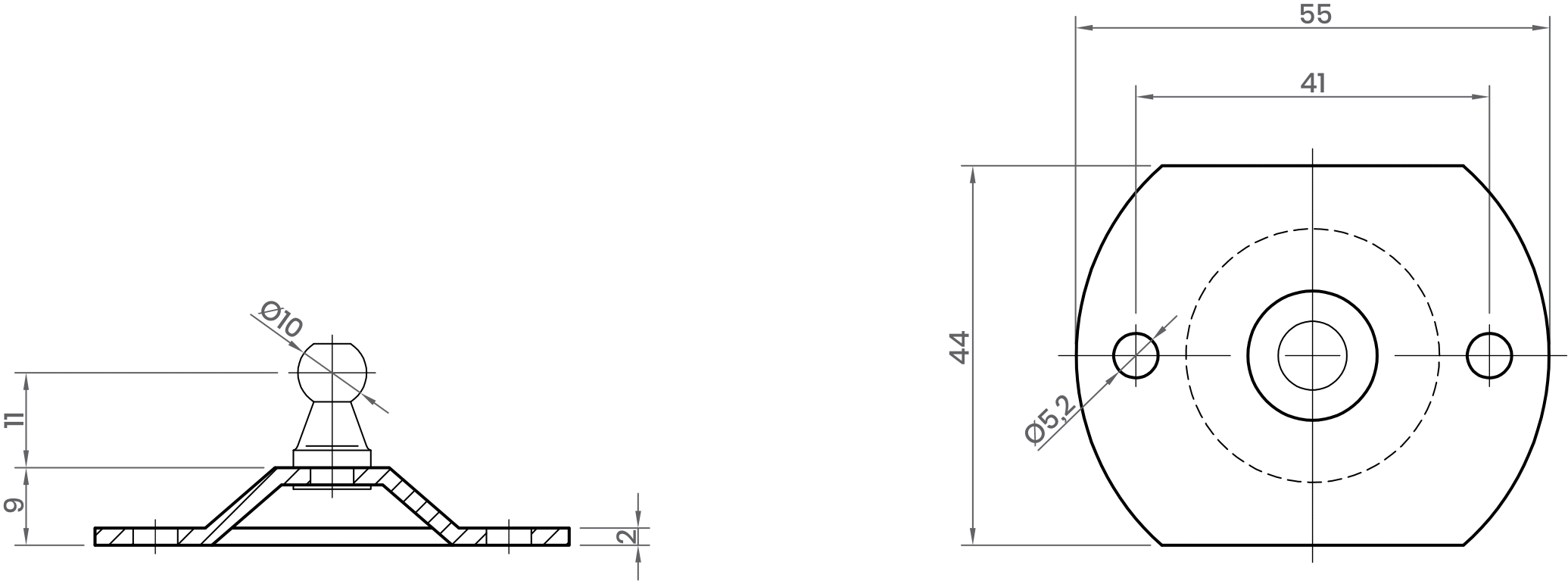

B12070
FEATURES
BALL BRACKET-BR20-B12070
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12070 S AISI316 - B12070 S/1
Weight Pressure
0.056 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12070
Black zinc plated (Zn/Black) B12070-1
Yellow zinc plated (Zn/Yellow) B12070-2
Shiny nickel plated B12070-3

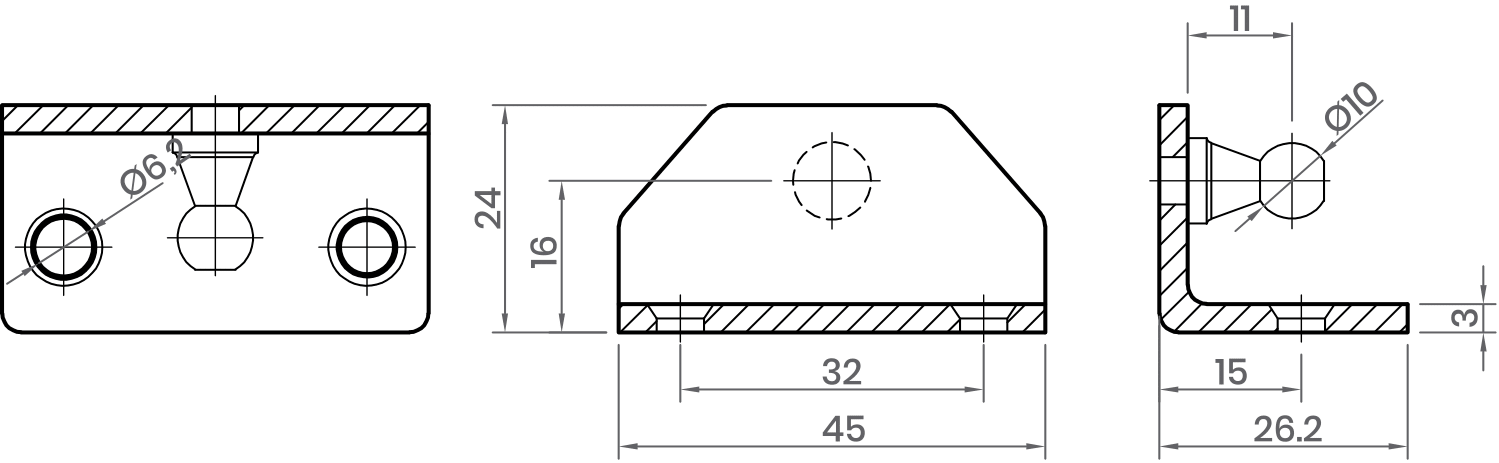

B12016
FEATURES
BALL BRACKET-BR1-B12016
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12016 S AISI316 - B12016 S/1
Weight Pressure
0.048 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12016
Black zinc plated (Zn/Black) B12016-1
Yellow zinc plated (Zn/Yellow) B12016-2
Shiny nickel plated B12016-3

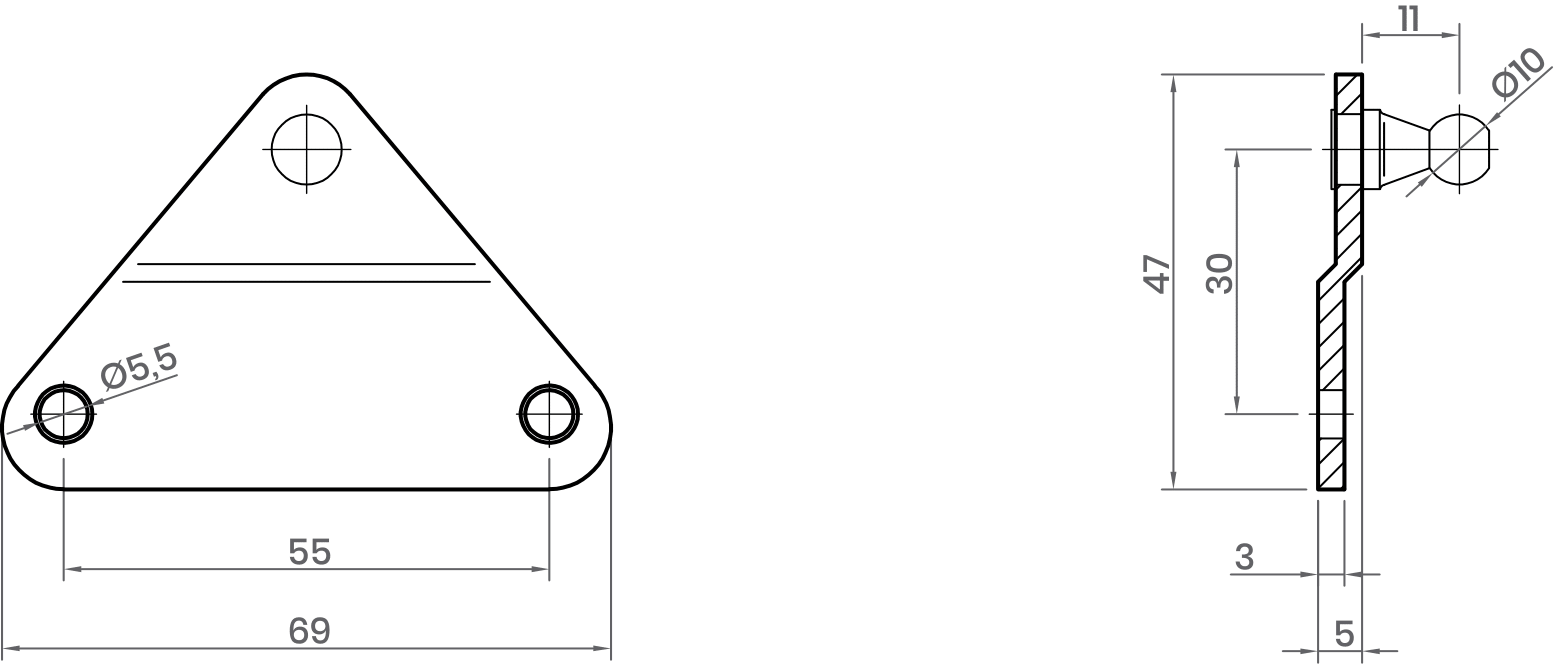

B12019
FEATURES
BALL BRACKET-BR2-B12019
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12019 S AISI316 - B12019 S/1
Weight Pressure
0.055 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12019
Black zinc plated (Zn/Black) B12019-1
Yellow zinc plated (Zn/Yellow) B12019-2
Shiny nickel plated B12019-3

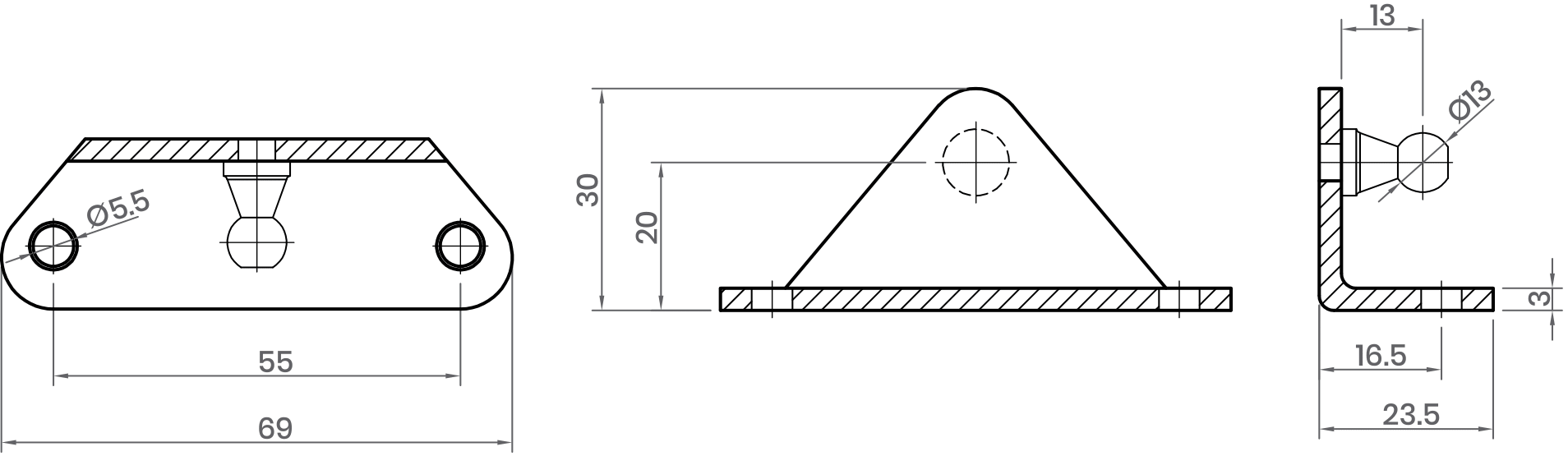

B12026
FEATURES
BALL BRACKET-BR4-B12026
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12026 S AISI316 - B12026 S/1
Weight Pressure
0.062 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12026
Black zinc plated (Zn/Black) B12026-1
Yellow zinc plated (Zn/Yellow) B12026-2
Shiny nickel plated B12026-3

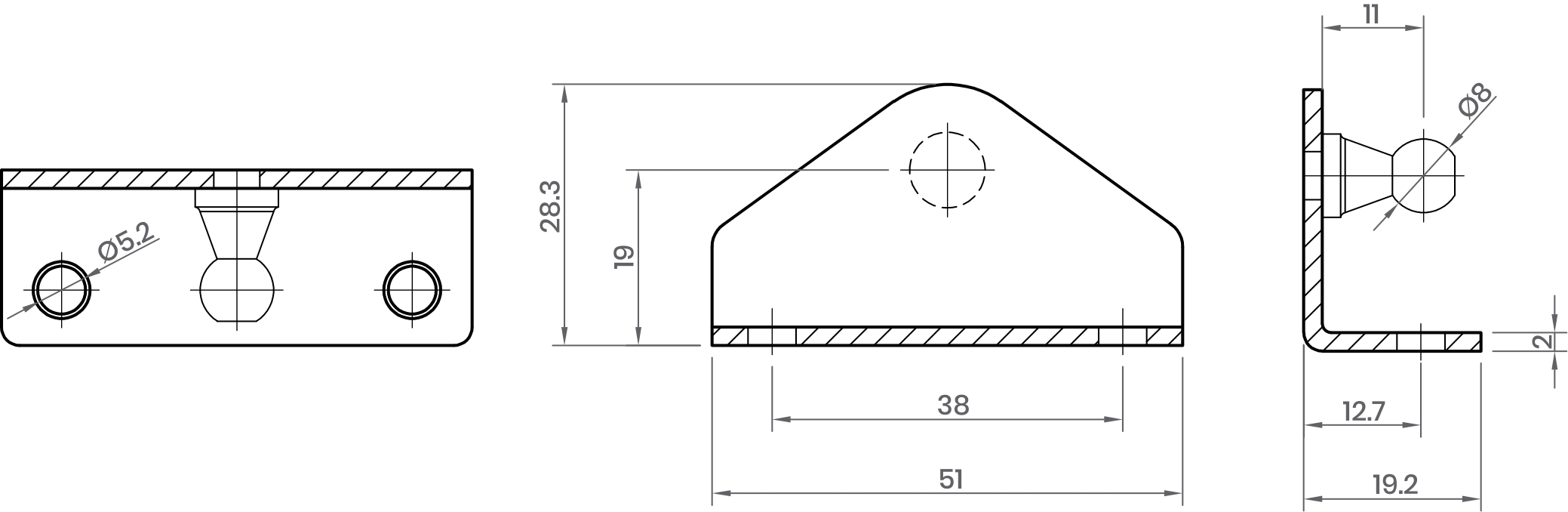

B12036
FEATURES
BALL BRACKET-BR8-B12036
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12036 S AISI316 - B12036 S/1
Weight Pressure
0.034 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12036
Black zinc plated (Zn/Black) B12036-1
Yellow zinc plated (Zn/Yellow) B12036-2
Shiny nickel plated B12036-3

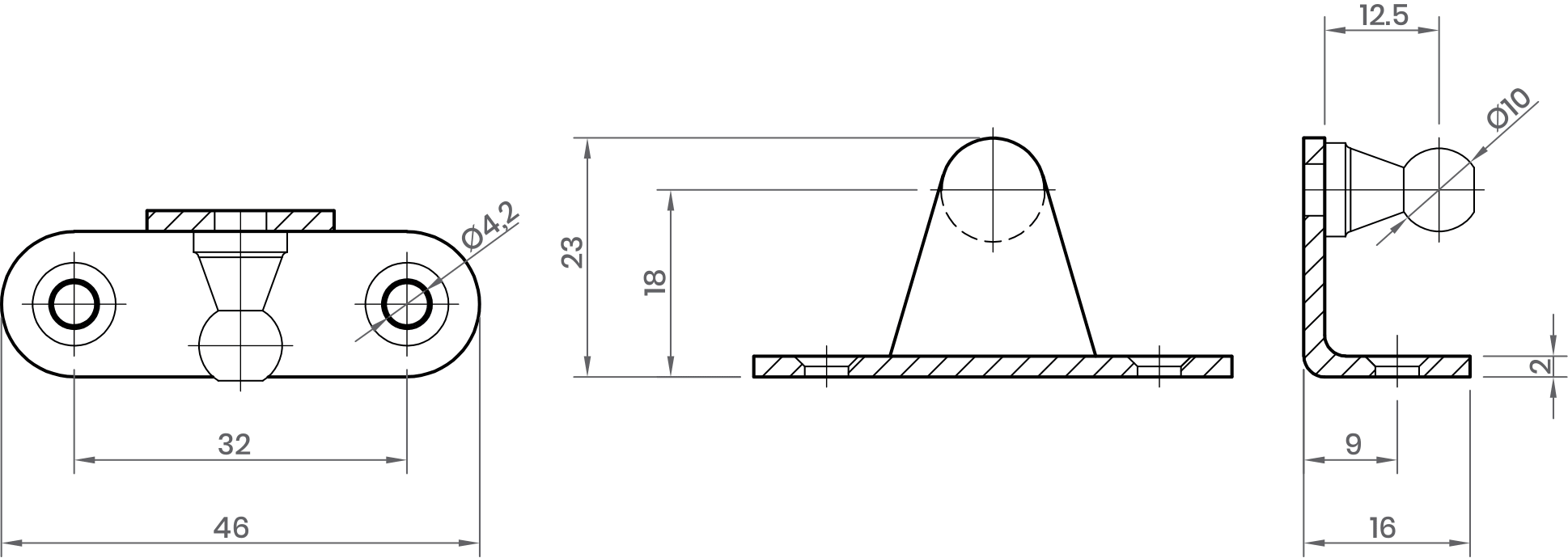

B12050
FEATURES
BALL BRACKET-BR13-B12050
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12050 S AISI316 - B12050 S/1
Weight Pressure
0.02 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12050
Black zinc plated (Zn/Black) B12050-1
Yellow zinc plated (Zn/Yellow) B12050-2
Shiny nickel plated B12050-3

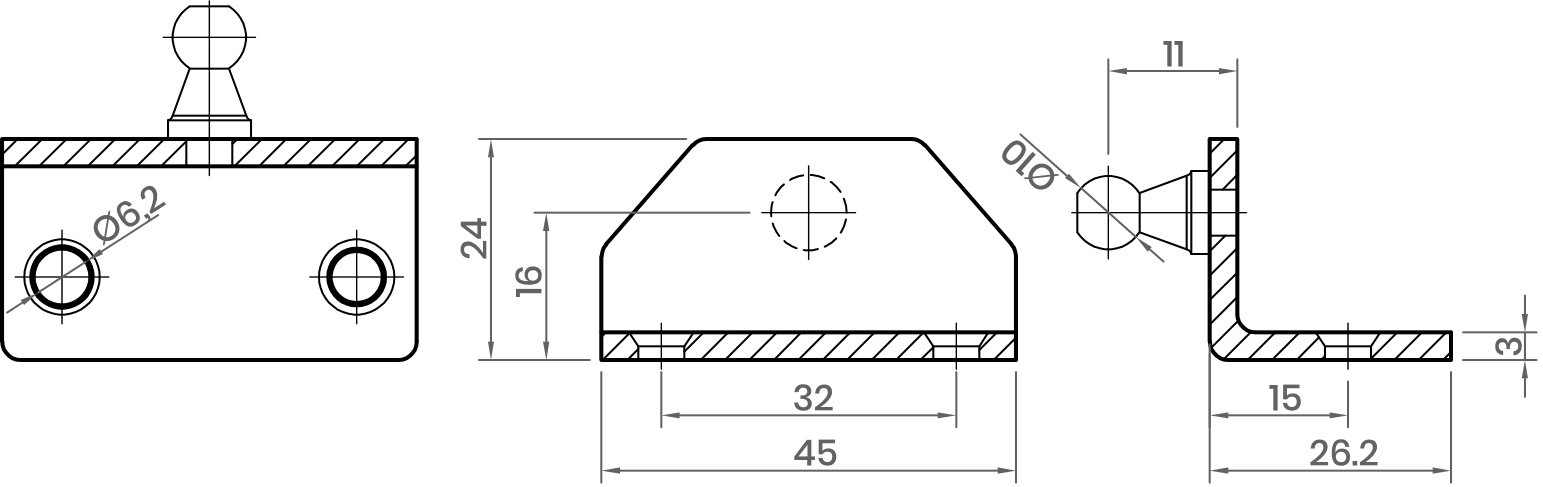

B12022
FEATURES
BALL BRACKET-BR3-B12022
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12022 S AISI316 - B12022 S/1
Weight Pressure
0.048 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12022
Black zinc plated (Zn/Black) B12022-1
Yellow zinc plated (Zn/Yellow) B12022-2
Shiny nickel plated B12022-3

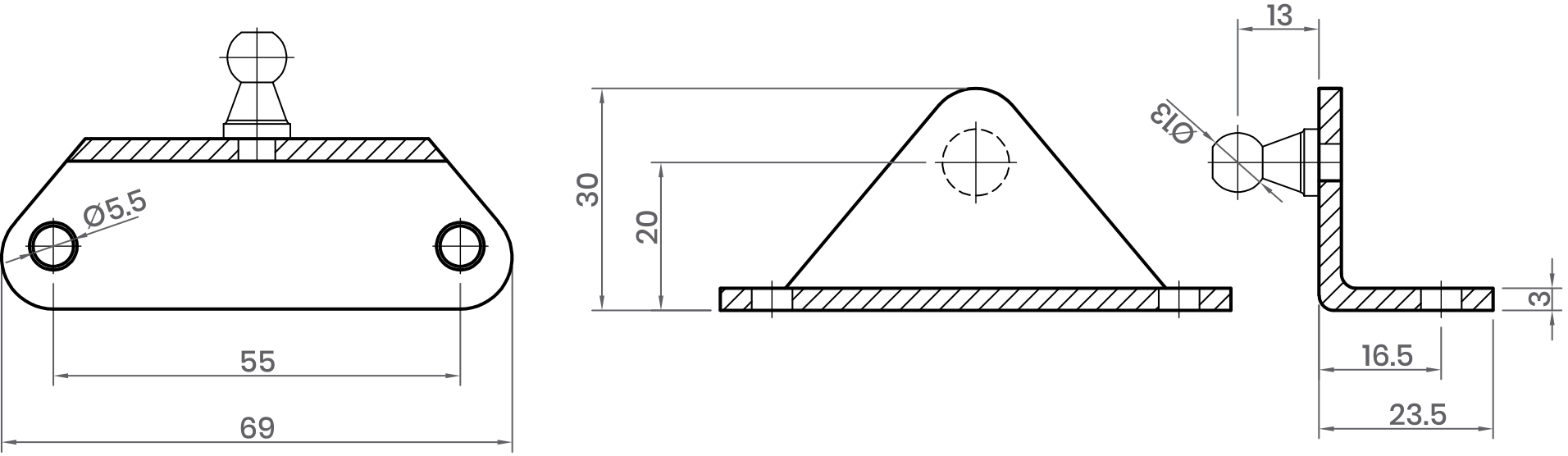

B12029
FEATURES
BALL BRACKET-BR5-B12029
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12029 S AISI316 - B12029 S/1
Weight Pressure
0.062 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12029
Black zinc plated (Zn/Black) B12029-1
Yellow zinc plated (Zn/Yellow) B12029-2
Shiny nickel plated B12029-3

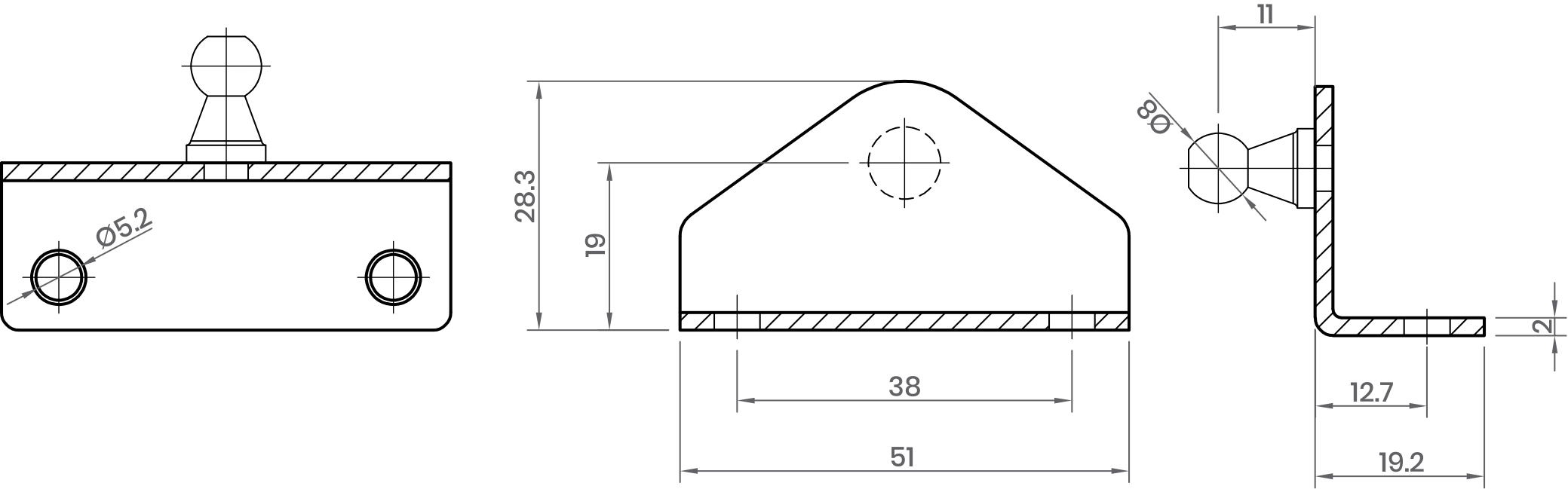

B12039
FEATURES
BALL BRACKET-BR9-B12039
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12039 S AISI316 - B12039 S/1
Weight Pressure
0.034 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12039
Black zinc plated (Zn/Black) B12039-1
Yellow zinc plated (Zn/Yellow) B12039-2
Shiny nickel plated B12039-3

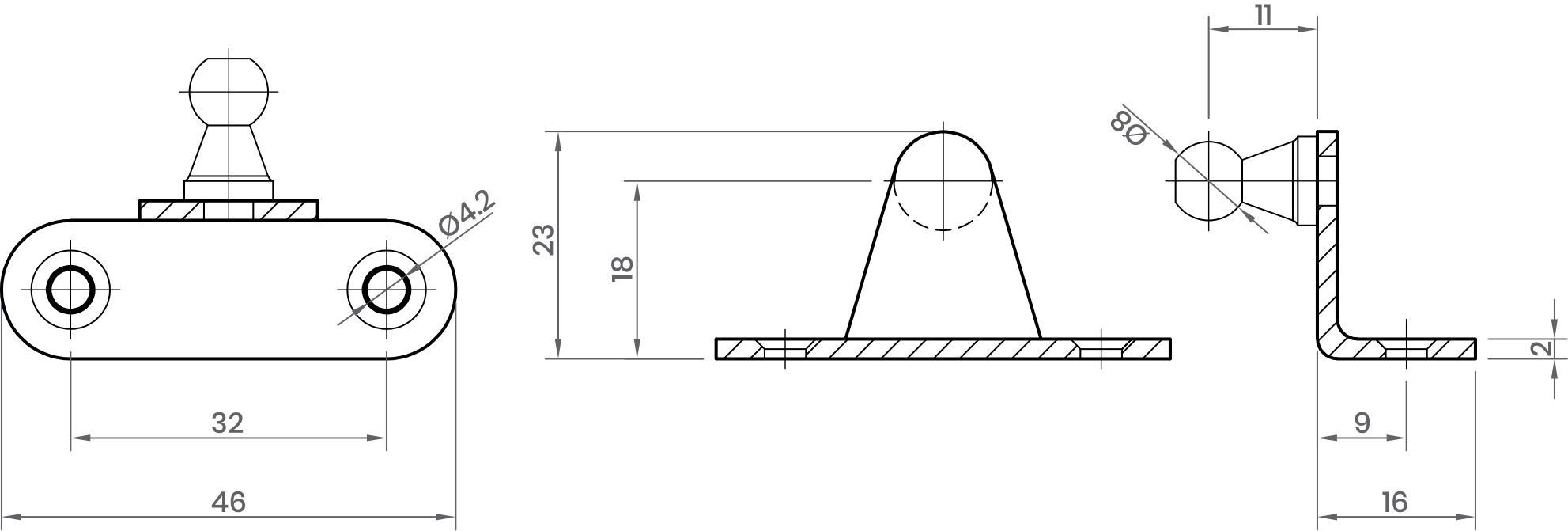

B12051
FEATURES
BALL BRACKET-BR14-B12051
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12051 S AISI316 - B12051 S/1
Weight Pressure
0.018 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12051
Black zinc plated (Zn/Black) B12051-1
Yellow zinc plated (Zn/Yellow) B12051-2
Shiny nickel plated B12051-3

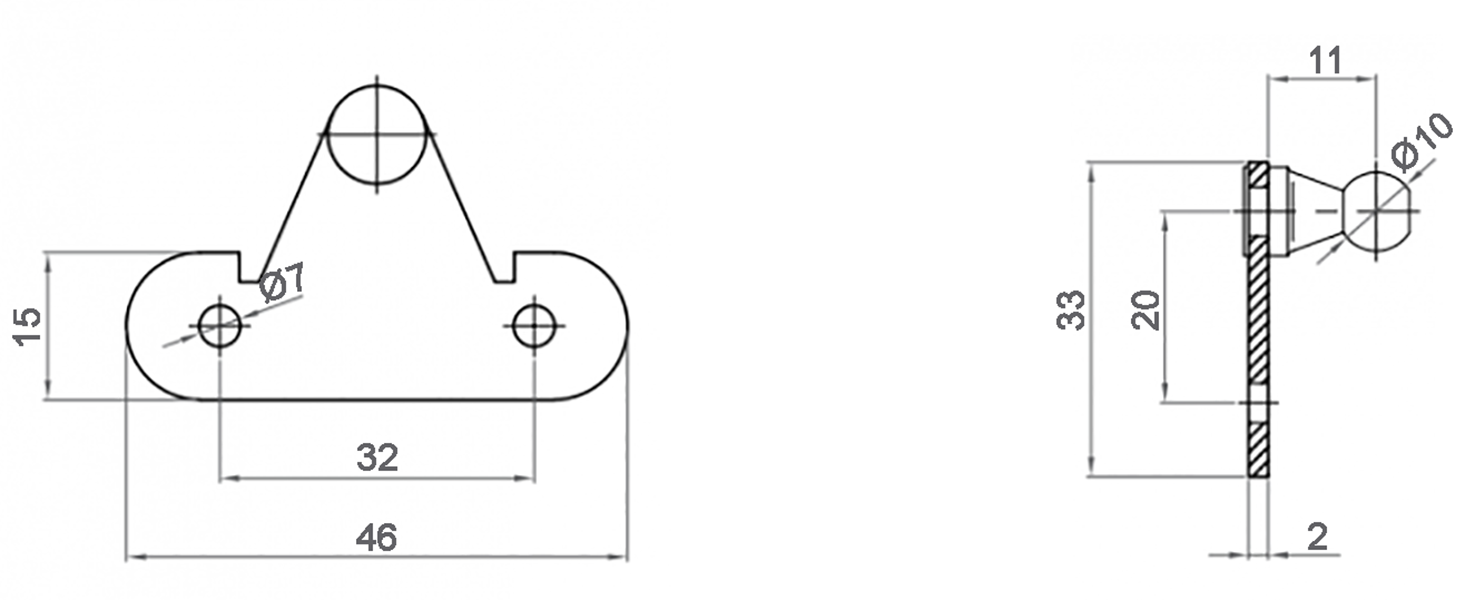

B12120
FEATURES
BALL BRACKET-BR18-B12120
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12120 S AISI316 - B12120 S/1
Weight Pressure
0.02 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12120
Black zinc plated (Zn/Black) B12120-1
Yellow zinc plated (Zn/Yellow) B12120-2
Shiny nickel plated B12120-3

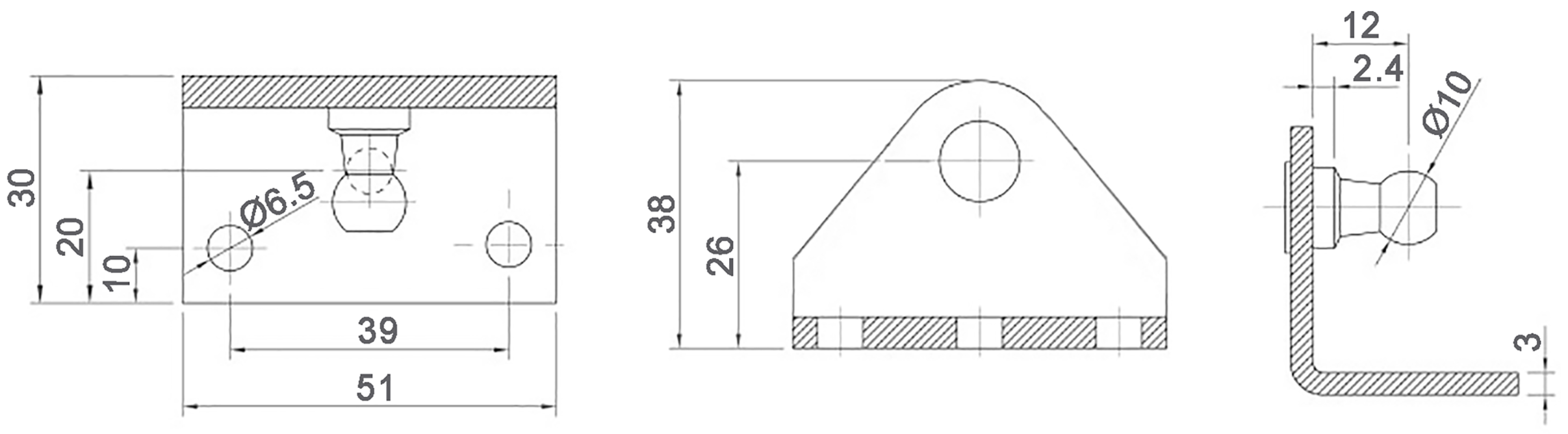

BR12120
FEATURES
BALL BRACKET-BR48-BR12120
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - BR12120 S AISI316 - BR12120 S/1
Weight Pressure
KG - N
Surface Treatment Part No
White zinc plated (Zn/White) BR12120
Black zinc plated (Zn/Black) BR12120-1
Yellow zinc plated (Zn/Yellow) BR12120-2
Shiny nickel plated BR12120-3
Please choose mounting type:

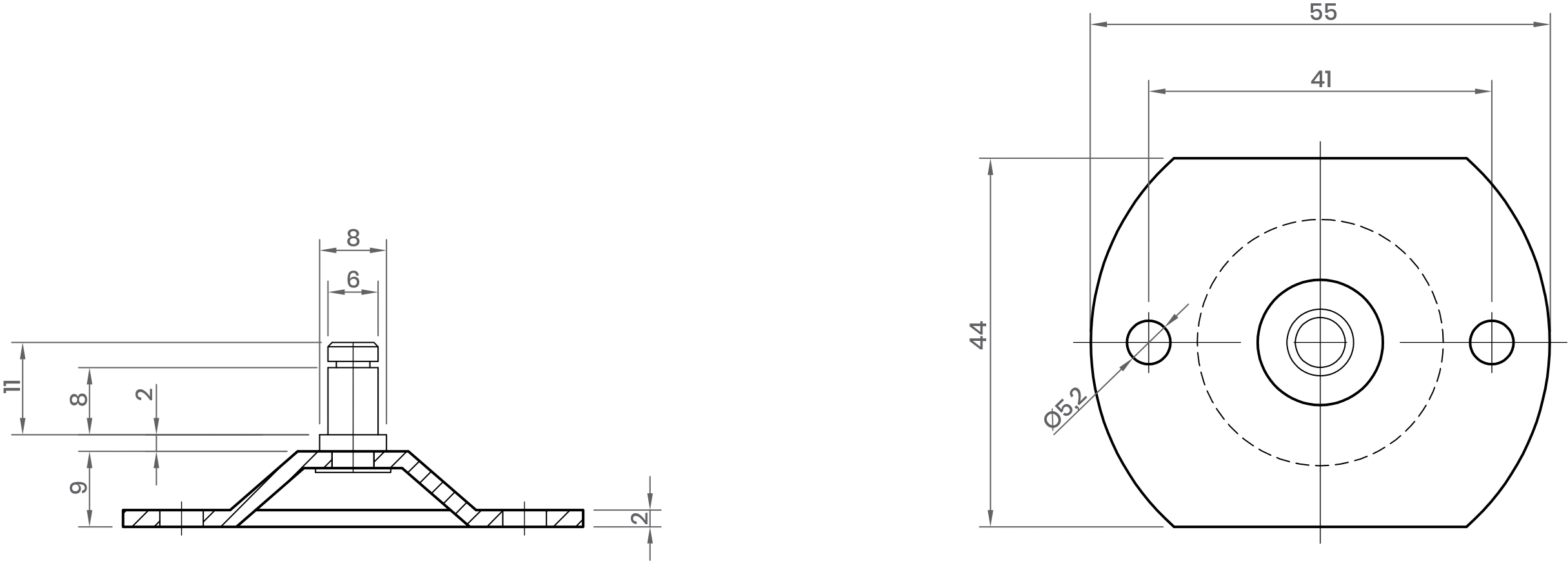

B12107
FEATURES
EYE BRACKET-BR39-B12107
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12107 S AISI316 - B12107 S/1
Weight Pressure
0.055 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12107
Black zinc plated (Zn/Black) B12107-1
Yellow zinc plated (Zn/Yellow) B12107-2
Shiny nickel plated B12107-3

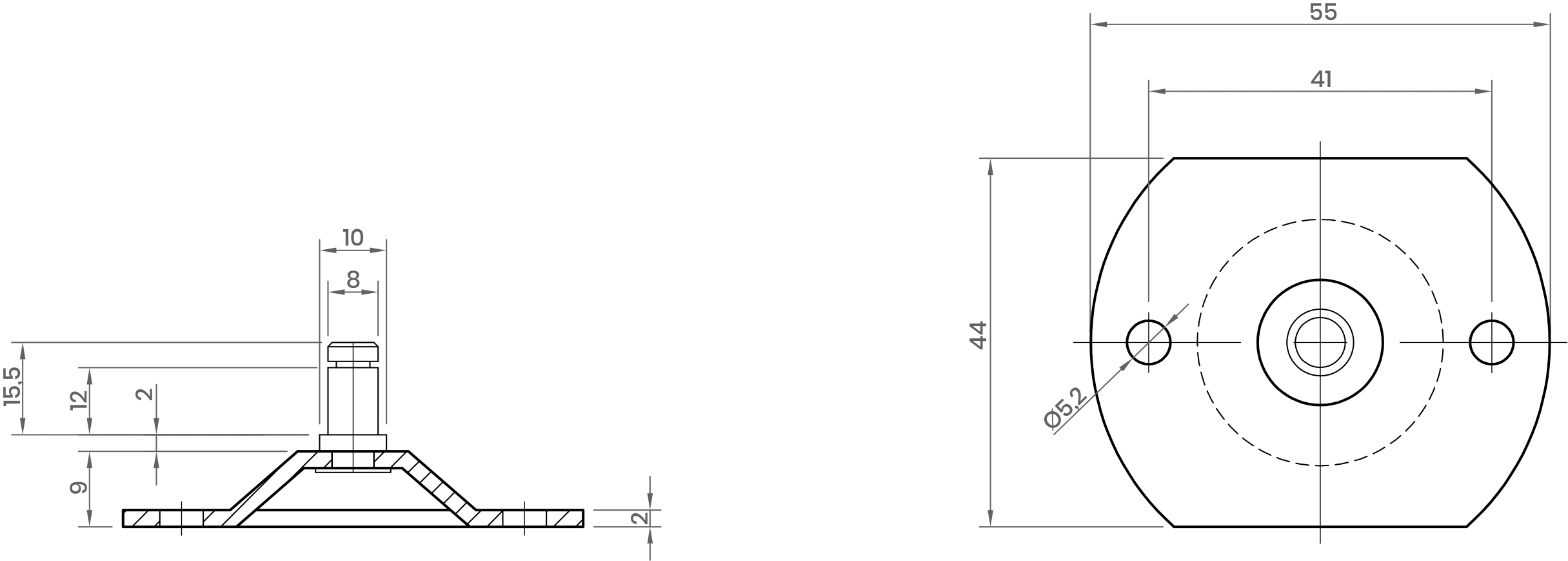

B12108
FEATURES
EYE BRACKET-BR39-B12108
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12108 S AISI316 - B12108 S/1
Weight Pressure
0.056 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12108
Black zinc plated (Zn/Black) B12108-1
Yellow zinc plated (Zn/Yellow) B12108-2
Shiny nickel plated B12108-3

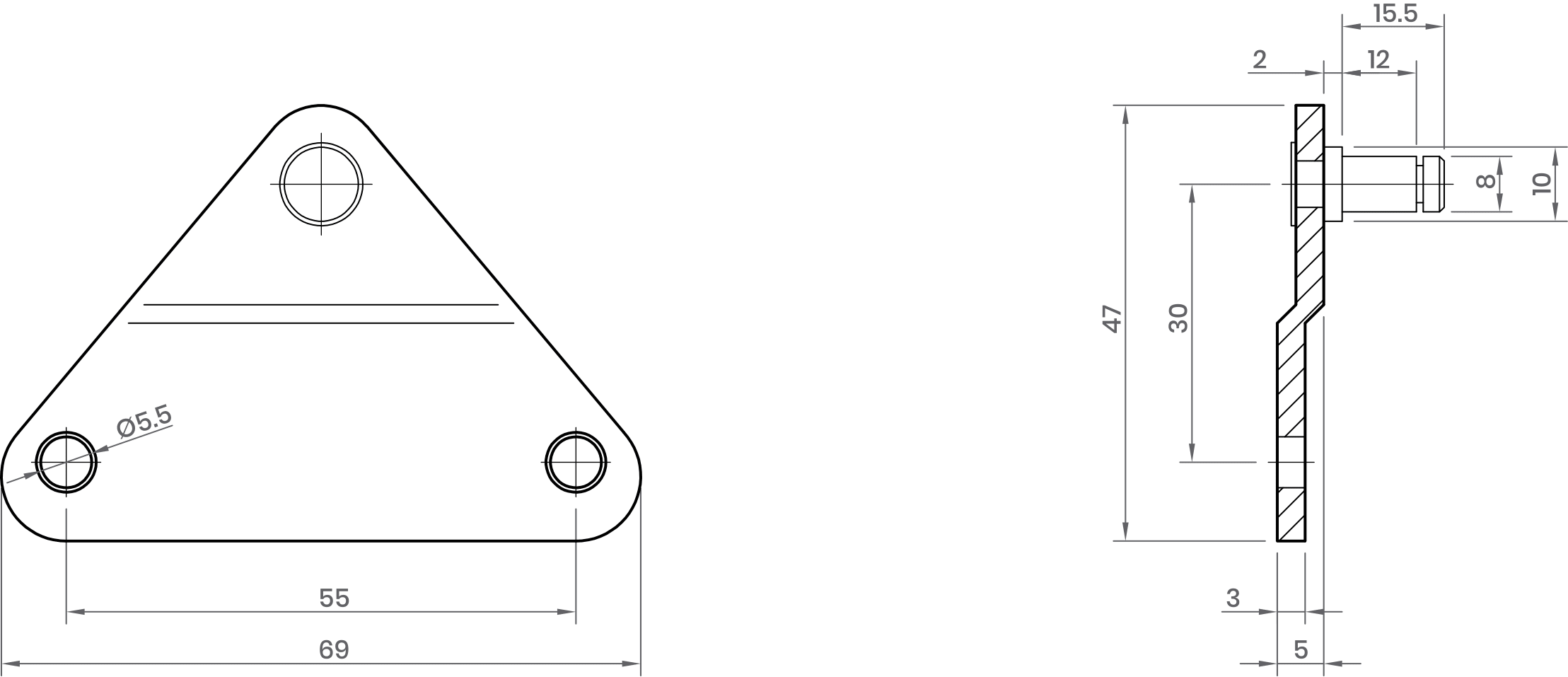

B12077
FEATURES
EYE BRACKET-BR23-B12077
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12077 S AISI316 - B12077 S/1
Weight Pressure
0.057 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12077
Black zinc plated (Zn/Black) B12077-1
Yellow zinc plated (Zn/Yellow) B12077-2
Shiny nickel plated B12077-3

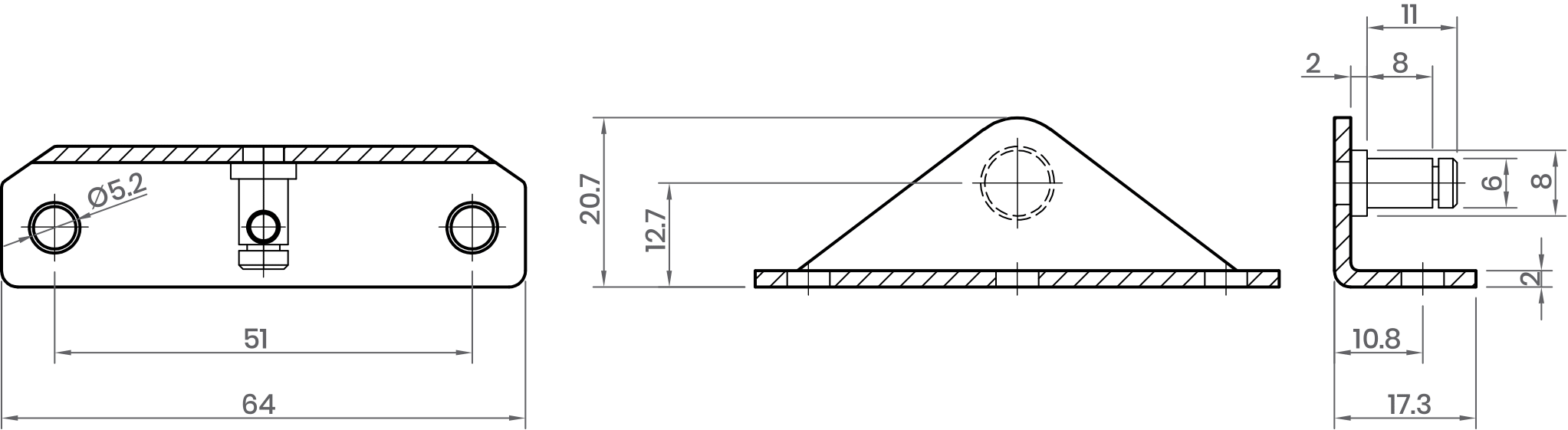

B12082
FEATURES
EYE BRACKET-BR26-B12082
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12082 S AISI316 - B12082 S/1
Weight Pressure
0.031 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12082
Black zinc plated (Zn/Black) B12082-1
Yellow zinc plated (Zn/Yellow) B12082-2
Shiny nickel plated B12082-3

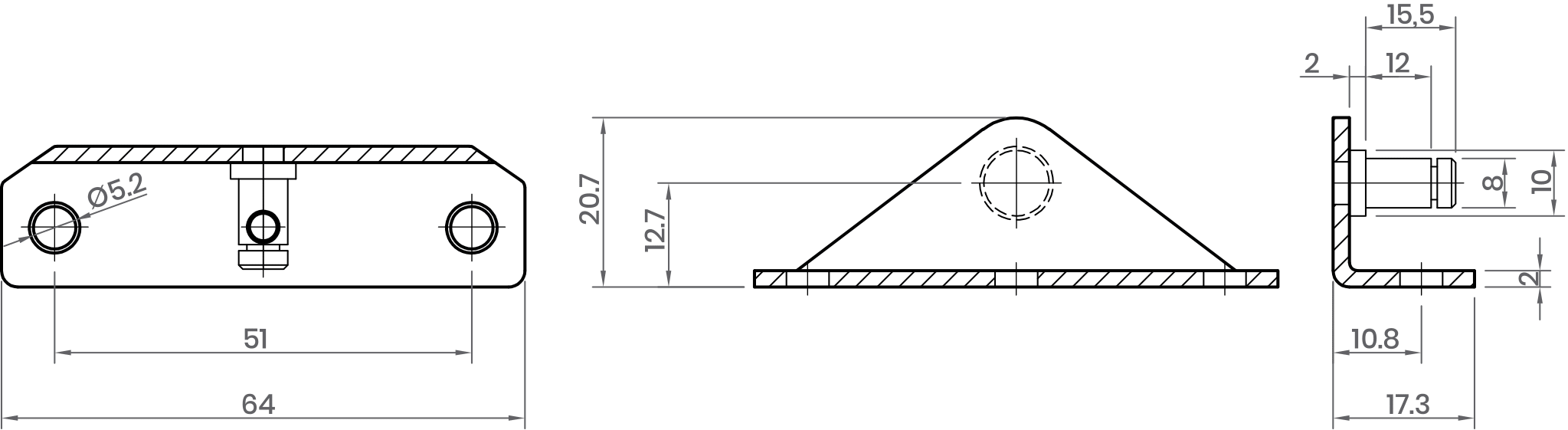

B12083
FEATURES
EYE BRACKET-BR26-B12083
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12083 S AISI316 - B12083 S/1
Weight Pressure
0.032 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12083
Black zinc plated (Zn/Black) B12083-1
Yellow zinc plated (Zn/Yellow) B12083-2
Shiny nickel plated B12083-3

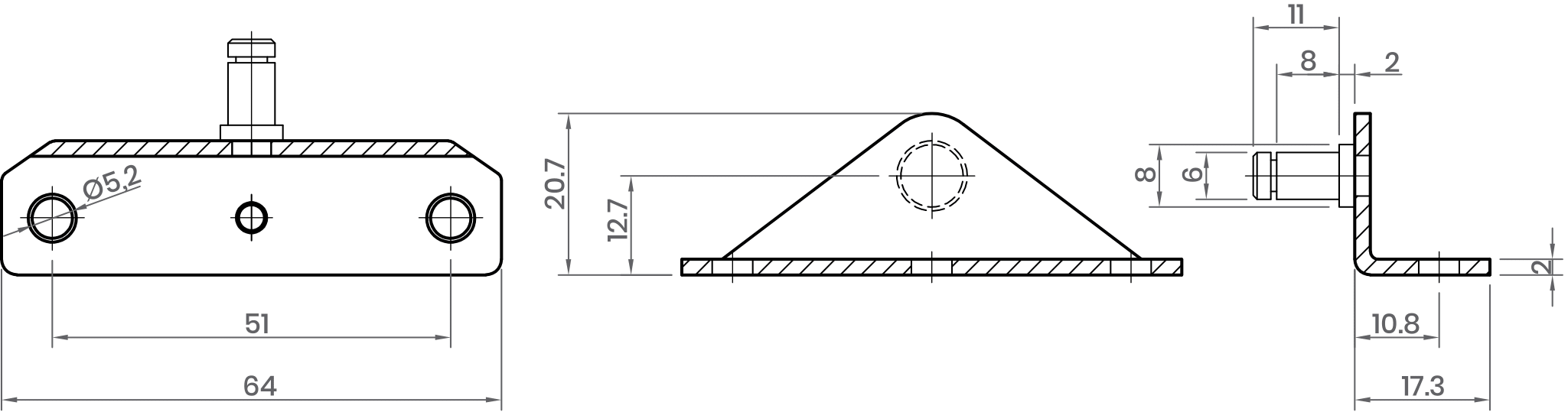

B12084
FEATURES
EYE BRACKET-BR27-B12084
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12084 S AISI316 - B12084 S/1
Weight Pressure
0.031 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12084
Black zinc plated (Zn/Black) B12084-1
Yellow zinc plated (Zn/Yellow) B12084-2
Shiny nickel plated B12084-3
B12085
FEATURES
EYE BRACKET-BR27-B12085
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12085 S AISI316 - B12085 S/1
Weight Pressure
0.032 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12085
Black zinc plated (Zn/Black) B12085-1
Yellow zinc plated (Zn/Yellow) B12085-2
Shiny nickel plated B12085-3

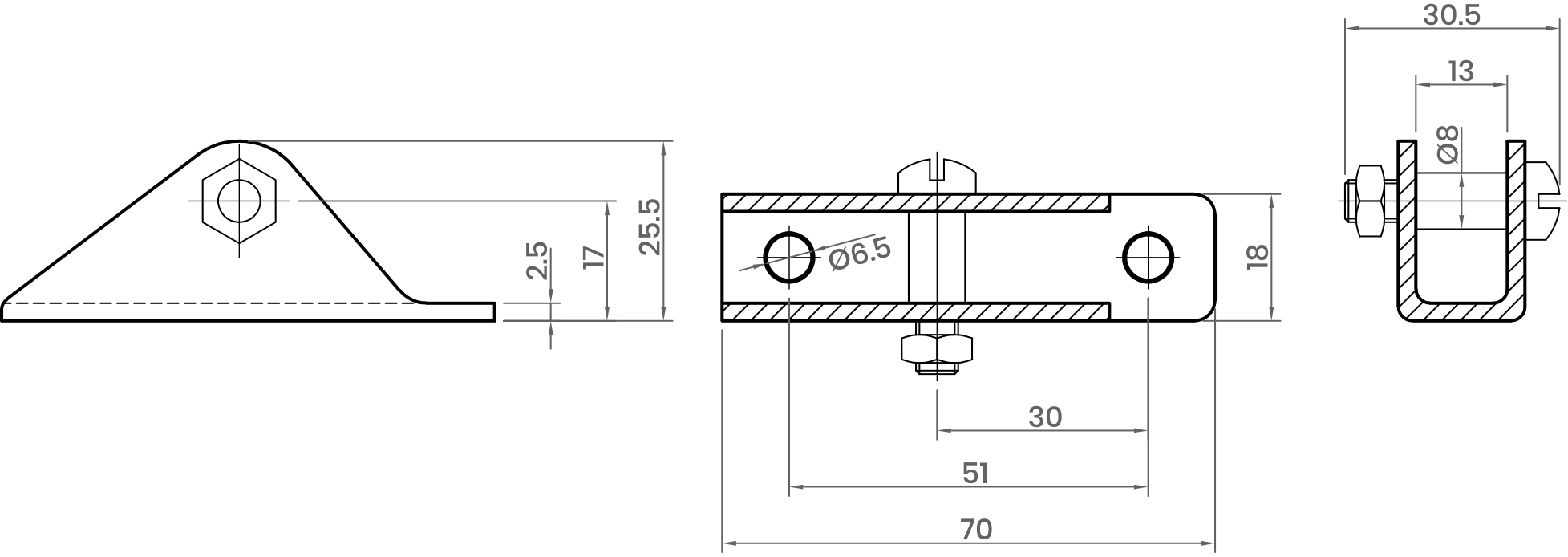

B12042
FEATURES
EYE BRACKET-BR10-B12042
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12042 S AISI316 - B12042 S/1
Weight Pressure
0.06 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12042
Black zinc plated (Zn/Black) B12042-1
Yellow zinc plated (Zn/Yellow) B12042-2
Shiny nickel plated B12042-3

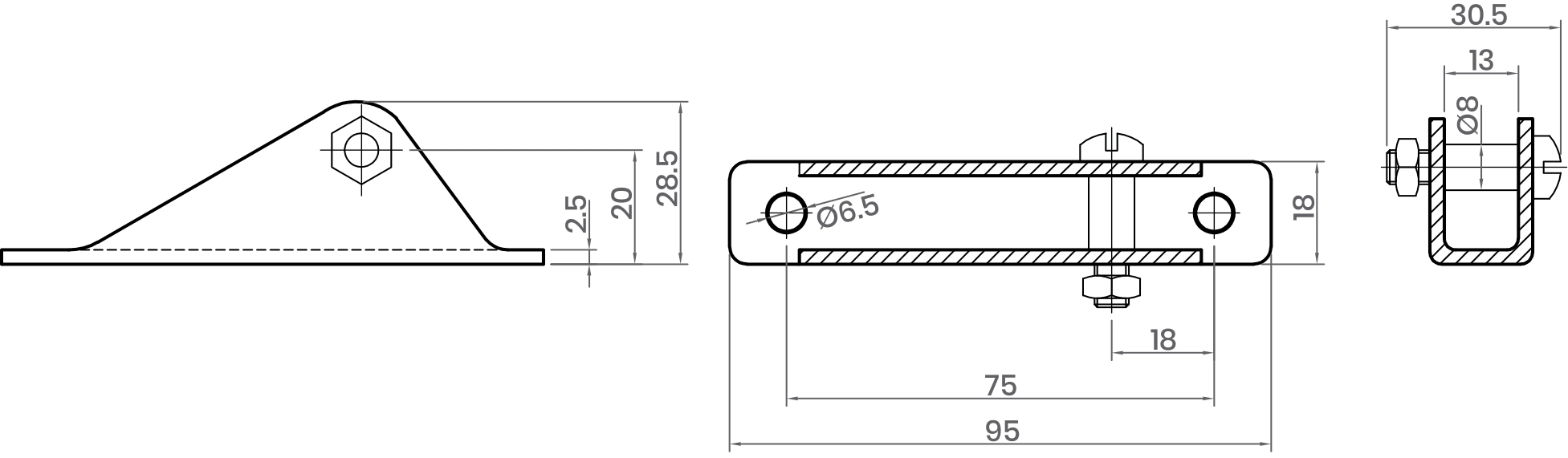

B12111
FEATURES
EYE BRACKET-BR11-B12111
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12111 S AISI316 - B12111 S/1
Weight Pressure
0.079 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12111
Black zinc plated (Zn/Black) B12111-1
Yellow zinc plated (Zn/Yellow) B12111-2
Shiny nickel plated B12111-3

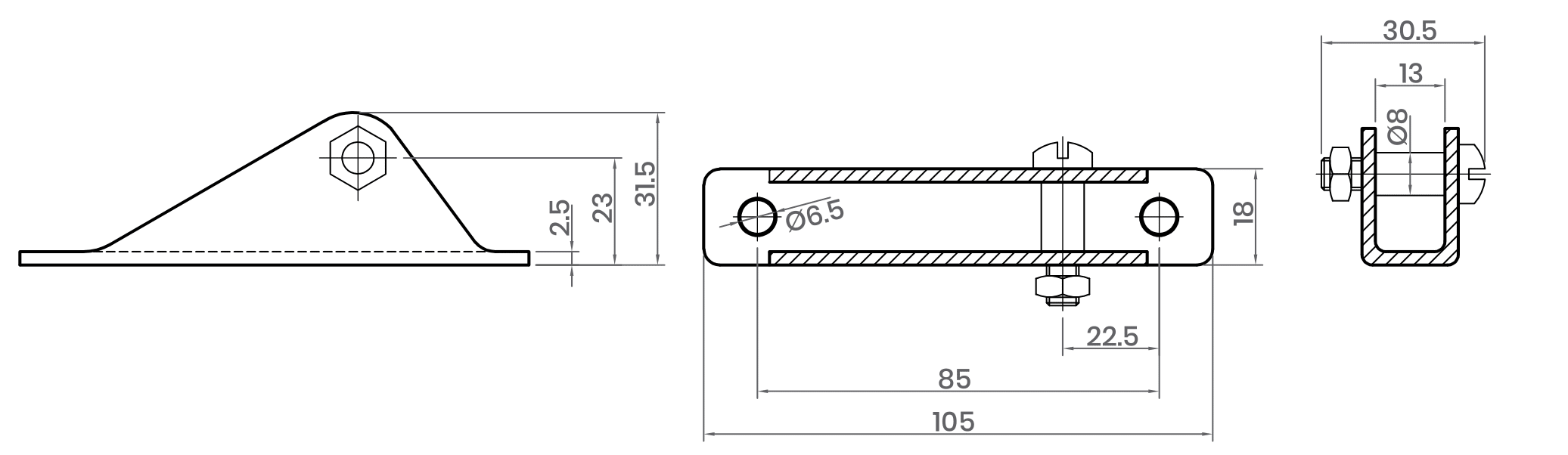

B12044
FEATURES
EYE BRACKET-BR11-B12044
Material
Bracket: Carbon steel sheet / Stud: Free cutting steel DIN 1.0718
INOX Options AISI304 - B12044 S AISI316 - B12044 S/1
Weight Pressure
0.087 KG - N
Surface Treatment Part No
White zinc plated (Zn/White) B12044
Black zinc plated (Zn/Black) B12044-1
Yellow zinc plated (Zn/Yellow) B12044-2
Shiny nickel plated B12044-3
